With Remote Audio Controls

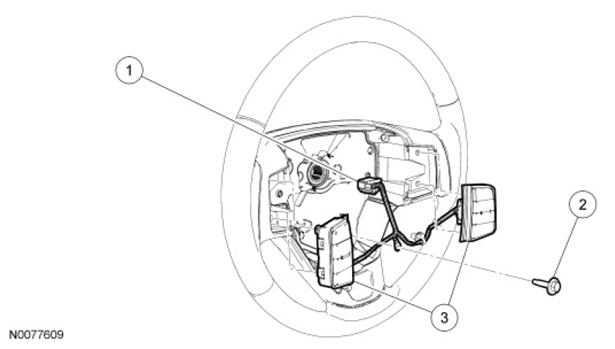

Fig 1: Identifying Cruise Control Switch Components (With Remote Audio Controls)
G06937699Courtesy of FORD MOTOR CO.
PART DESCRIPTION CHART

Item Part Number Description
1 - Cruise control switches electrical connector (part of 9C888)
2 - Cruise control switches ground screw
3 9C888 Cruise control switches
