Transaxle Case: Assembly

  1. Using the special tools, install the differential gear bearing cup.
    NOTE: If a new differential gear bearing cup is installed, measure the differential shim for the correct size. For additional information, refer to DIFFERENTIAL SHIM SELECTION .

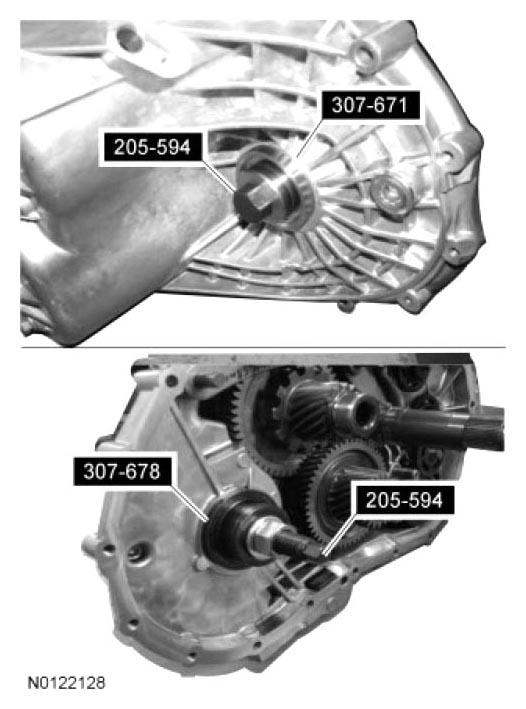

    Fig 1: Installing Differential Gear Bearing Cup Using Special Tools
    G06939646Courtesy of FORD MOTOR CO.
  2. Install the new halfshaft seal on the special tools.

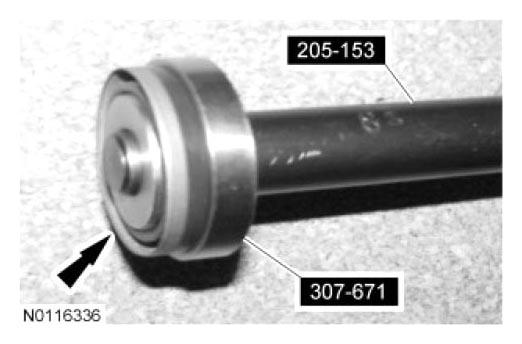

    Fig 2: Installing Halfshaft Seal On Special Tool
    G06939647Courtesy of FORD MOTOR CO.
  3. Using the special tools, install the new halfshaft seal.

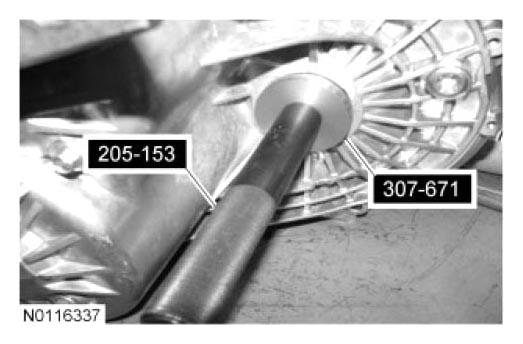

    Fig 3: Installing Halfshaft Seal Using Special Tools
    G06939648Courtesy of FORD MOTOR CO.
