Right Front Tweeter Connector - C613

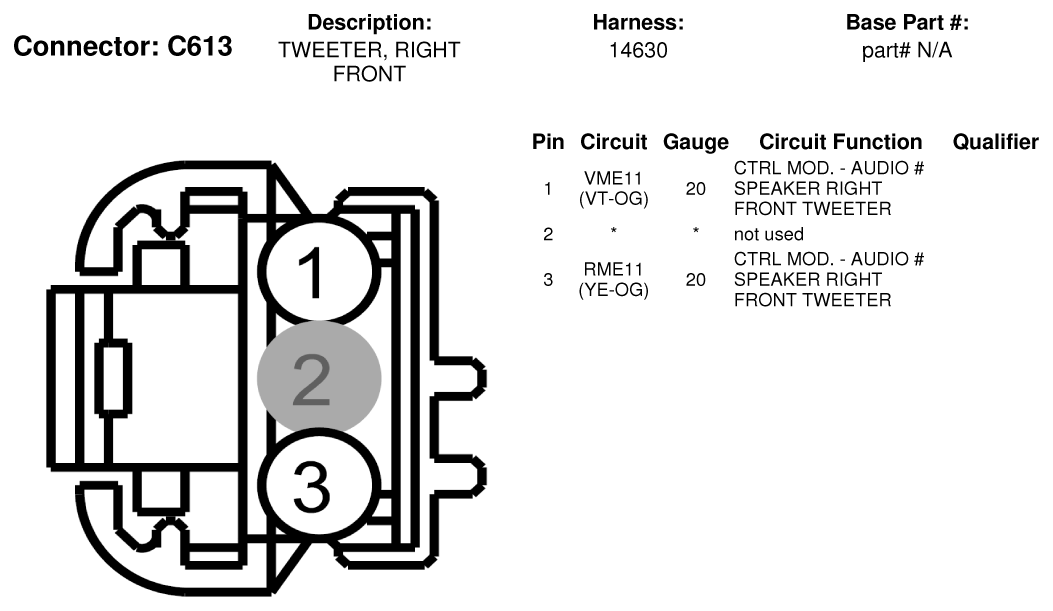

Fig 1: Right Front Tweeter Connector End View (C613)

G07329146

Courtesy of FORD MOTOR CO.
