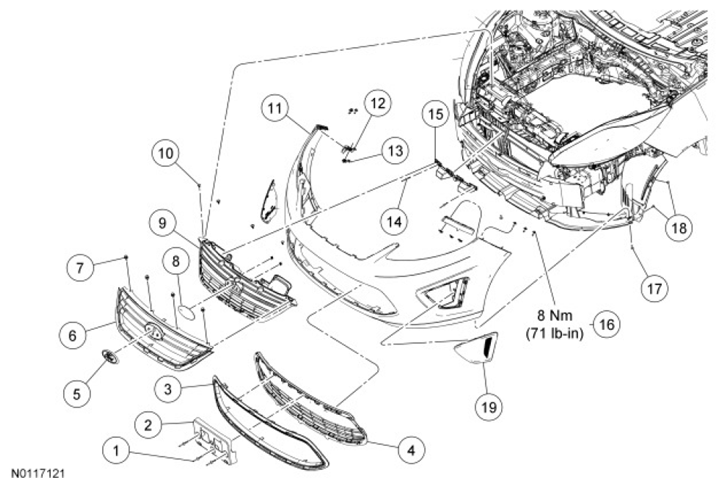

Bumper - Exploded View, Front
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W705297 | License plate bracket rivet (3 required) |
| 2 | 17A385 | License plate bracket |
| 3 | 8200 | Lower radiator grille outer frame |
| 4 | 8200 | Lower radiator grille |
| 5 | 8213 | Emblem |
| 6 | 8200 | Upper radiator grille |
| 7 | N807389 | Upper radiator grille pin-type retainer (4 required) |
| 8 | 8213 | Emblem base (5-door hatchback only) |
| 9 | 8A284 | Upper radiator grille reinforcement |
| 10 | W714040 | Upper radiator grille reinforcement pin-type retainer (4 required) |
| 11 | 17D957 | Front bumper cover |
| 12 | 17E856/ 17E857 | Front bumper cover bracket (RH/LH) |
| 13 | W520822 | Front bumper cover bracket nut (6 required) |
| 14 | W706737 | Upper radiator grille lower reinforcement bracket rivet |
| 15 | 8A284 | Upper radiator grille lower reinforcement bracket |
| 16 | W503924 | Front bumper cover screw (6 required) |
| 17 | W710763 | Radiator lower air deflector retainer (3 required) |
| 18 | W701054 | Front fender splash shield retainers (4 required) |
| 19 | 17E810/ 17E811 | Supplemental parking lamps cover (RH/LH) |
- For additional information, refer to the appropriate procedures in this service information.
