Headlamp Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

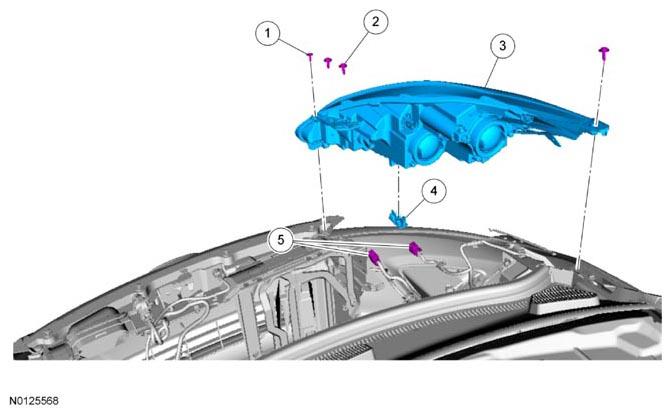

RH shown in illustration, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714040 | Upper radiator grille reinforcement pin-type retainer |
| 2 | W702733 | Headlamp assembly bolt (3 required) |
| 3 | 13008 | Headlamp assembly (RH/LH) |
| 4 | 13N129 | Headlamp assembly lower clip |
| 5 | - | Headlamp assembly electrical connectors (part of 14K102) |
