Removal and Installation

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

Remove the upper finish panel. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the 4 Front Controls Interface Module (FCIM) finish panel screws and rotate upwards from the bottom to release the 3 clips. Remove the FCIM finish panel.
- Disconnect the electrical connector and release the Passenger Air Bag Deactivation (PAD) indicator from the FCIM finish panel.

  Fig 1: Removing Front Controls Interface Module Finish Panel
  Courtesy of FORD MOTOR CO.
Remove the 4 screws from the FCIM and remove the FCIM from the finish panel.

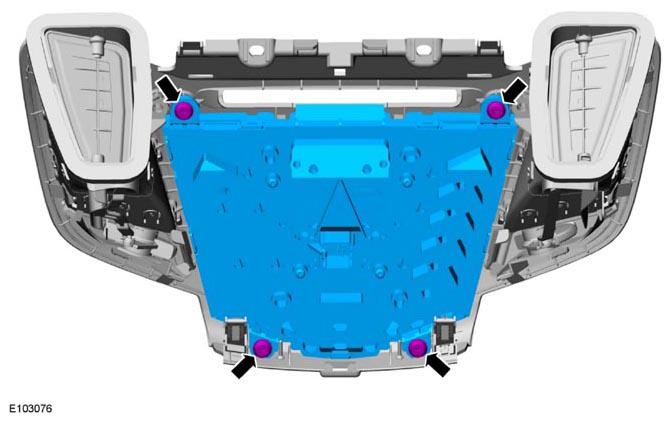

Fig 2: Locating FCIM Mounting Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
