Halfshaft - RH: Notes
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS DESCRIPTION
| Installer, Constant Velocity Joint Boot Clamp 205-343 (T95P-3514-A) |
|
| Puller, Bearing 205-D064 (D84L-1123-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Constant Velocity Joint Grease (High Temperature) XG-5 |
WSS-M1C258-A1 |

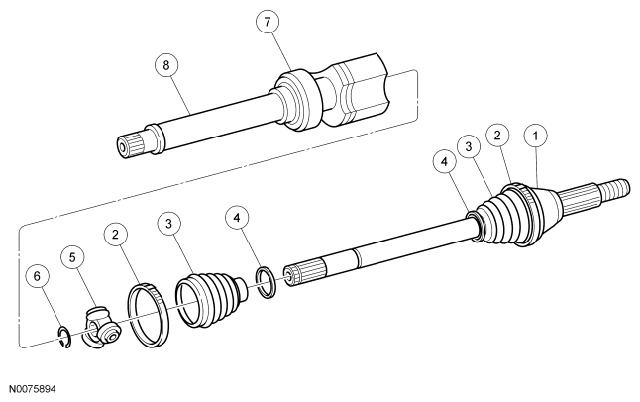

| Item | Part Number | Description |
|---|---|---|
| 1 | 3B418 | Outboard fixed ball CV joint |
| 2 | 3B478 | Large CV boot clamps |
| 3 | 3A331 | Outboard CV boots |
| 4 | 3B478 | Small CV joint boot clamps |
| 5 | 3W007A | Tripod joint |
| 6 | 4B422 | Snap ring |
| 7 | 3B436 | Intermediate shaft support bearing |
| 8 | 3K183 | Intermediate shaft |
