Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

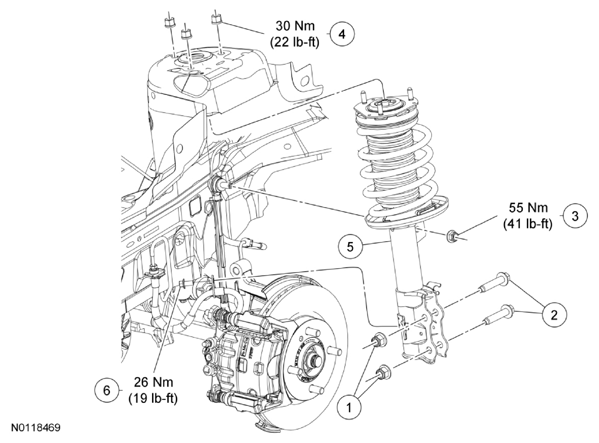

| Item |
Part Number |
Description |
| 1 |
W520214 |
Wheel knuckle-to-strut nut (2 required) |
| 2 |
W500742 |
Wheel knuckle-to-strut bolt (2 required) |
| 3 |
W713760 |
Stabilizer bar link upper nut |
| 4 |
W715409 |
Strut upper nut (3 required) |
| 5 |
18124 |
Strut and spring assembly |
| 6 |
W500222 |
Brake hose bracket to strut bolt |
