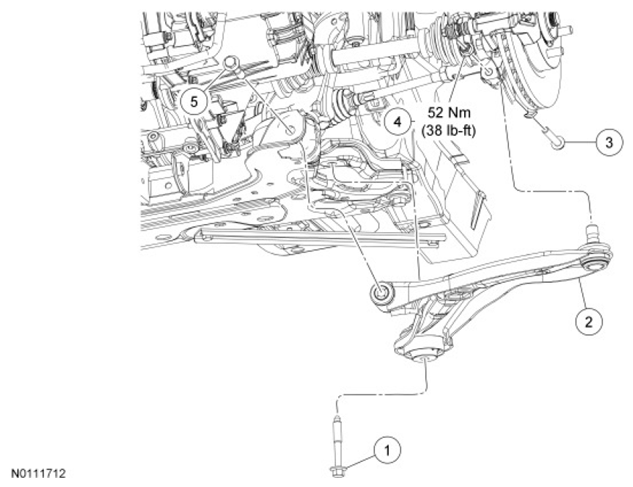

Lower Arm: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W703432 |
Rear lower arm bolt |
| 2 |
3079 LH/3078 RH |
Lower arm |
| 3 |
W709618 |
Ball joint bolt |
| 4 |
W520203 |
Ball joint nut |
| 5 |
W703432 |
Forward lower arm bolt |
