Strut and Spring Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Silicone Brake Caliper Grease and Dielectric Compound XG-3-A |
ESE-M1C171-A |

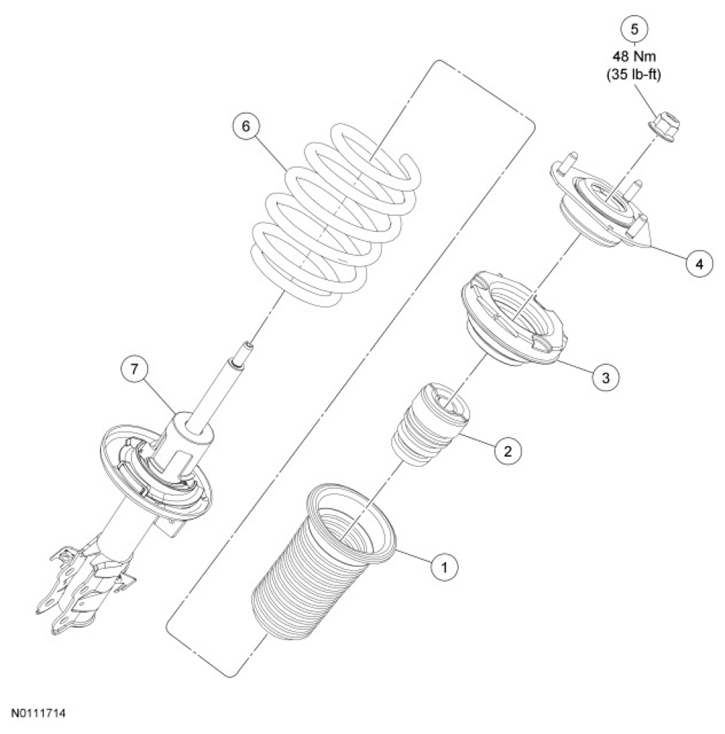

| Item | Part Number | Description |
|---|---|---|
| 1 | 5349 | Dust boot |
| 2 | 3020 | Jounce bumper |
| 3 | 18198 | Spring upper seat and bearing assembly |
| 4 | 18183 | Upper mount |
| 5 | W708922 | Strut rod nut |
| 6 | 5310 | Spring |
| 7 | 18124 | Strut assembly |
