Valve Cover: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

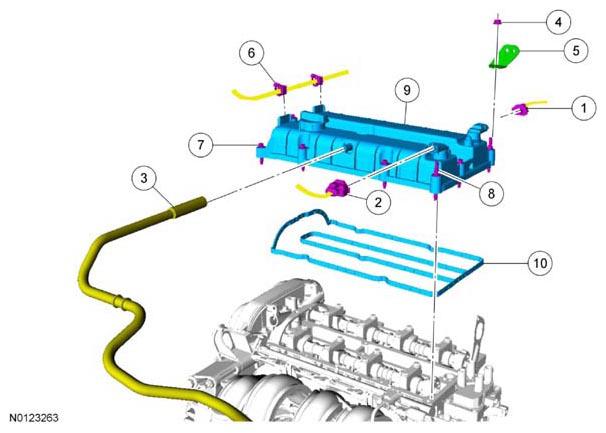

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Exhaust Camshaft Position (CMP) sensor electrical connector (part of 12A581) |
| 2 | - | Intake CMP sensor electrical connector (part of 12A581) |
| 3 | 6A664 | Crankcase vent tube |
| 4 | W520412 | Heated Oxygen Sensor (HO2S) connector bracket nut - 8 Nm (71 lb-in) |
| 5 | 14A163 | HO2S connector bracket |
| 6 | - | Wiring harness retainer (part of 12A581) (2 required) |
| 7 | - | Valve cover bolt (8 required) (part of 6M293) - 9 Nm (80 lb-in) |
| 8 | - | Valve cover stud bolt (4 required) (part of 6M293) - 9 Nm (80 lb-in) |
| 9 | 6582 | Valve cover |
| 10 | 6584 | Valve cover gasket |
