Timing Drive Components: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Tool, Variable Camshaft Timing (VCT) Alignment 303-1097 |
|
| Alignment Plate, Camshaft 303-376B |

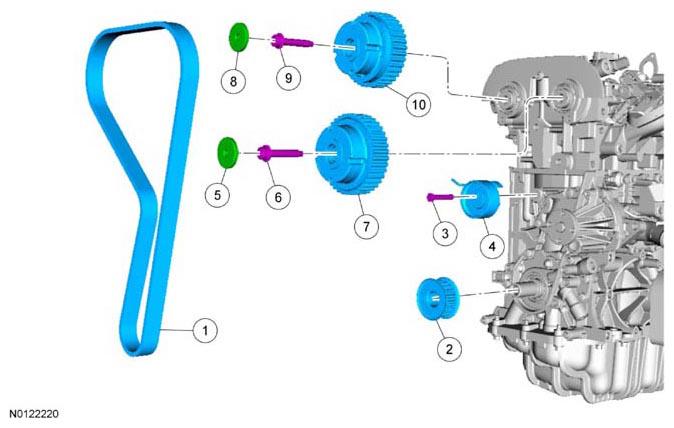

| Item | Part Number | Description |
|---|---|---|
| 1 | 6268 | Timing belt |
| 2 | 6306 | Crankshaft sprocket gear |
| 3 | 6A340 | Timing belt tensioner bolt |
| 4 | 6K254 | Timing belt tensioner |
| 5 | W710954 | Intake camshaft phaser and sprocket plug and seal |
| 6 | 6279 | Intake camshaft phaser and sprocket bolt |
| 7 | 6256 | Intake camshaft phaser and sprocket |
| 8 | W710954 | Exhaust camshaft phaser and sprocket plug and seal |
| 9 | 6279 | Exhaust camshaft phaser and sprocket bolt |
| 10 | 6256 | Exhaust camshaft phaser and sprocket |
