Timing Belt Cover: Notes
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

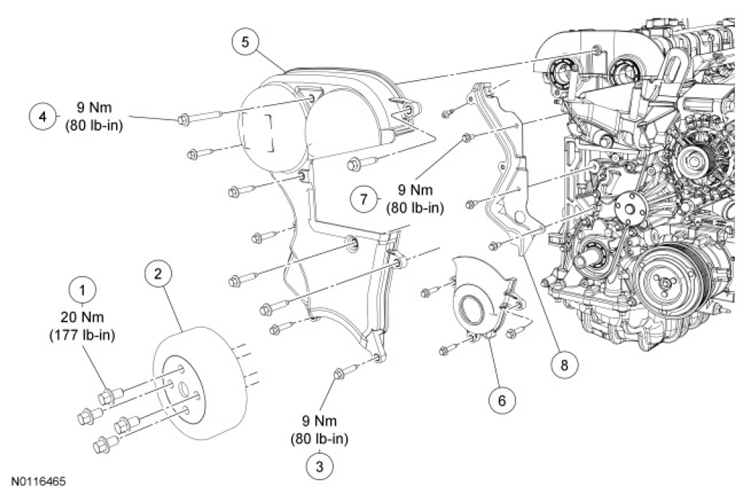

| Item | Part Number | Description |
|---|---|---|
| 1 | W714914 | Coolant pump pulley bolt (3 required) |
| 2 | 8509 | Coolant pump pulley |
| 3 | W500215 | Upper and lower timing belt cover bolt (12 required) |
| 4 | W500303 | Upper timing belt cover bolt |
| 5 | 6019 | Upper timing belt cover |
| 6 | 6019 | Lower timing belt cover |
| 7 | W702251 | Timing belt cover backplate bolt (4 required) |
| 8 | 6019 | Timing belt cover backplate |
