Disassembly And Assembly Of Subassemblies: Piston: Assembly
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
- Gradually heat the pin bore side of the connecting rod to approximately 300°C (572°F).
- Align the piston-to-connecting rod orientation marks, and immediately install the piston pin.
- Using the portable multipurpose press, press the piston pin into the piston and connecting rod assembly.
- Install the piston rings.

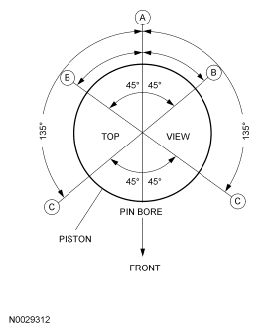

- Make sure the ring gaps (oil spacer - A, oil ring - B, compression ring - C) are correctly spaced around the circumference of the piston.
NOTE:
Lubricate all parts with clean engine oil.
NOTE:
The upper and lower compression rings are to be fitted with the identification marks on the upper side.
