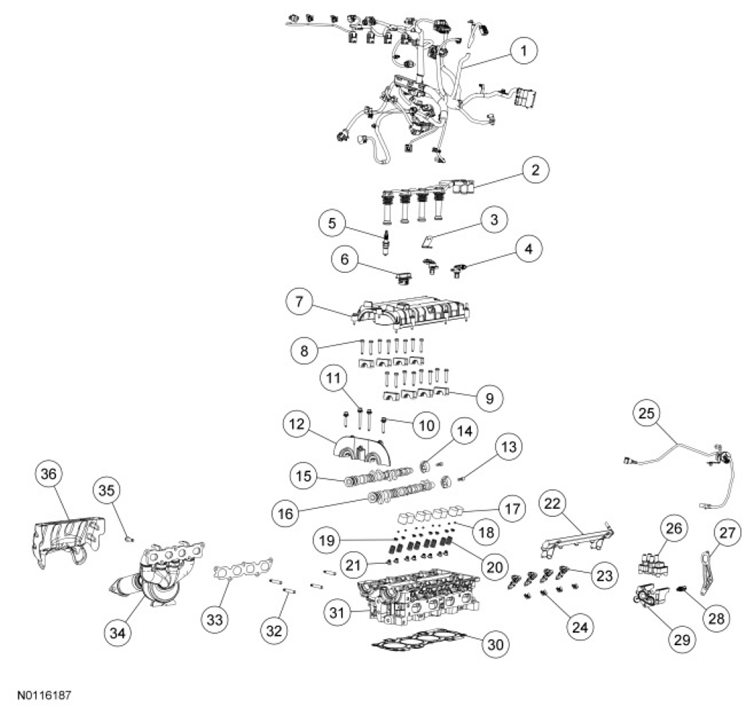

Upper Engine
WARNING: This page is about a different car, the 2012 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12A581 | Engine wiring harness |
| 2 | 12259 | Spark plug wire (4 required) |
| 3 | 14A163 | Heated Oxygen Sensor (HO2S) connector bracket |
| 4 | 6B288 | Camshaft Position (CMP) sensor (2 required) |
| 5 | 12405 | Spark plug (4 required) |
| 6 | 6766 | Oil fill cap |
| 7 | 6582 | Valve cover |
| 8 | W706225 | Camshaft cap bolt (16 required) |
| 9 | - | Camshaft cap (8 required) (part of 6049) |
| 10 | - | Variable Camshaft Timing (VCT) bridge bolt (2 required) (part of 6049) |
| 11 | - | VCT bridge bolt (2 required) (part of 6049) |
| 12 | - | VCT bridge (part of 6049) |
| 13 | W700279 | Camshaft trigger wheel bolt (2 required) (part of 6250) |
| 14 | 6M265 | Camshaft trigger wheel (2 required) (part of 6250) |
| 15 | 6250 | Exhaust camshaft |
| 16 | 6250 | Intake camshaft |
| 17 | 6500 | Valve tappet (16 required) |
| 18 | 6518 | Valve collet (16 required) |
| 19 | 6514 | Valve spring retainer (16 required) |
| 20 | 6513 | Valve spring (16 required) |
| 21 | 6571 | Valve seal (16 required) |
| 22 | 9D280 | Fuel rail |
| 23 | 9F593 | Fuel injector (4 required) |
| 24 | 9C995 | Fuel injector clip (4 required) |
| 25 | 9C047 | Evaporative Emission (EVAP) tube |
| 26 | 12029 | Ignition coil |
| 27 | - | Lift eye bracket |
| 28 | 12A648 | Engine Coolant Temperature (ECT) sensor |
| 29 | 8K556 | Coolant outlet |
| 30 | 6051 | Cylinder head gasket |
| 31 | 6049 | Cylinder head |
| 32 | W703540 | Catalytic converter stud bolt (4 required) |
| 33 | 9448 | Catalytic converter gasket |
| 34 | 5G232 | Catalytic converter |
| 35 | W500634 | Catalytic converter bolt |
| 36 | 9N454 | Catalytic converter heat shield |
