Remote Functions Receiver (RFR) Module
WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

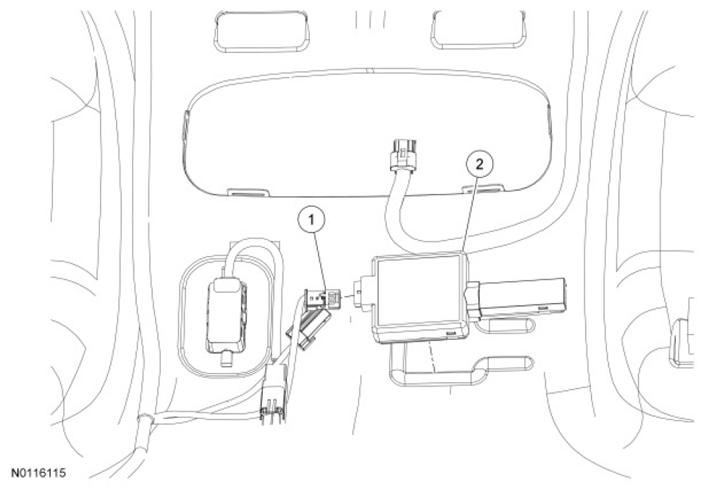

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RFR module electrical connector (part of 14334) |
| 2 | 15K602 | Remote Functions Receiver (RFR) |
- Remove the headliner. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
- Disconnect the Remote Functions Receiver (RFR) module electrical connector.
- Using a suitable tool (such as a trim removal tool), gently pry the RFR module away from the headliner.
- To install, reverse the removal procedure.
NOTE:
The RFR module is secured to the headliner with 3M Duramix® 4747 Super Fast Adhesive at the assembly plant. When installing the RFR module, make sure to use 3M Duramix® 4747 Super Fast Adhesive to secure the RFR module to the headliner in approximately the same position and orientation on the headliner.
