Input Shaft Speed Sensor 2 Connector - C164

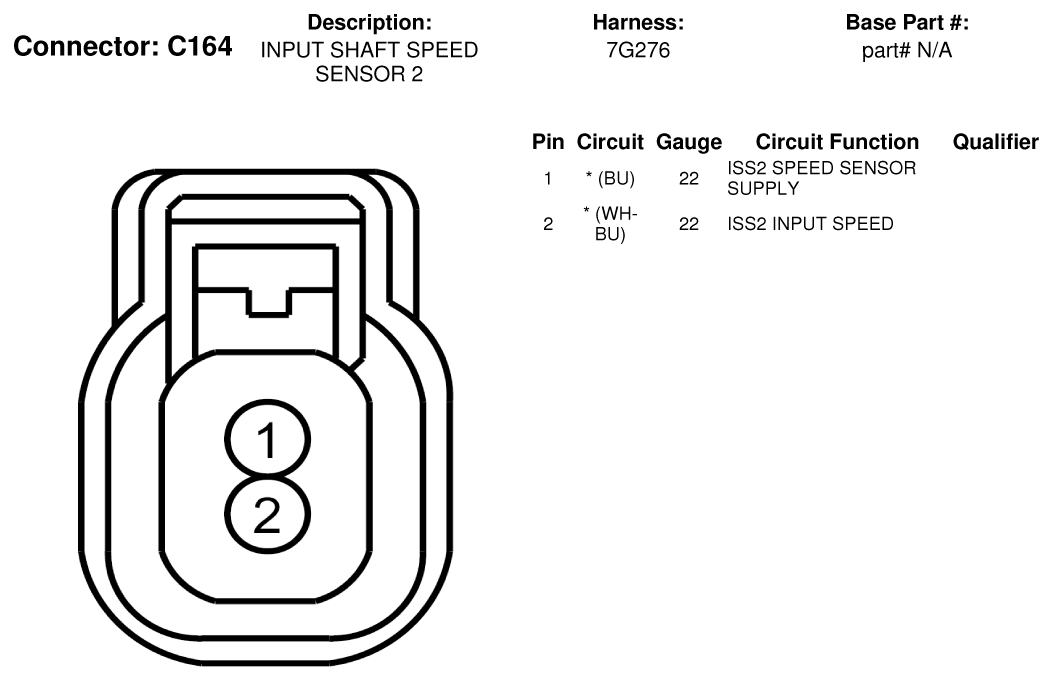

Fig 1: Input Shaft Speed Sensor 2 Connector End View (C164)

G07329026

Courtesy of FORD MOTOR CO.
