Ford
>>
2011
>>
Fiesta SES, Automatic DCT
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Audio System_Navigation
>>
Notes
Audio System_Navigation: Notes

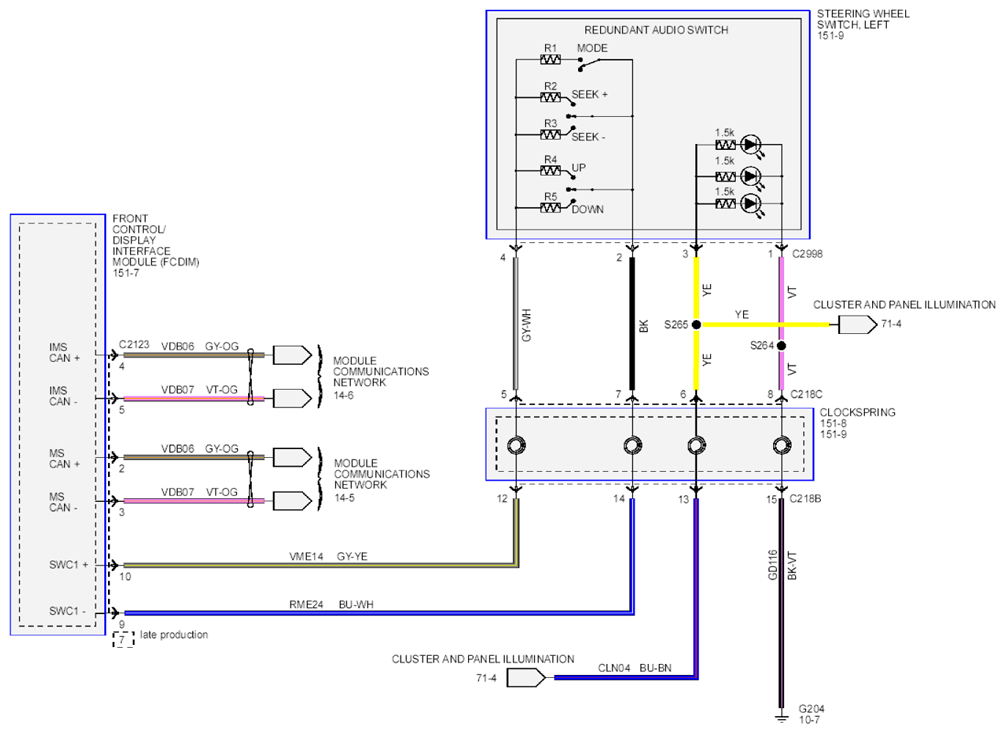

Fig 1: Audio System Navigation Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

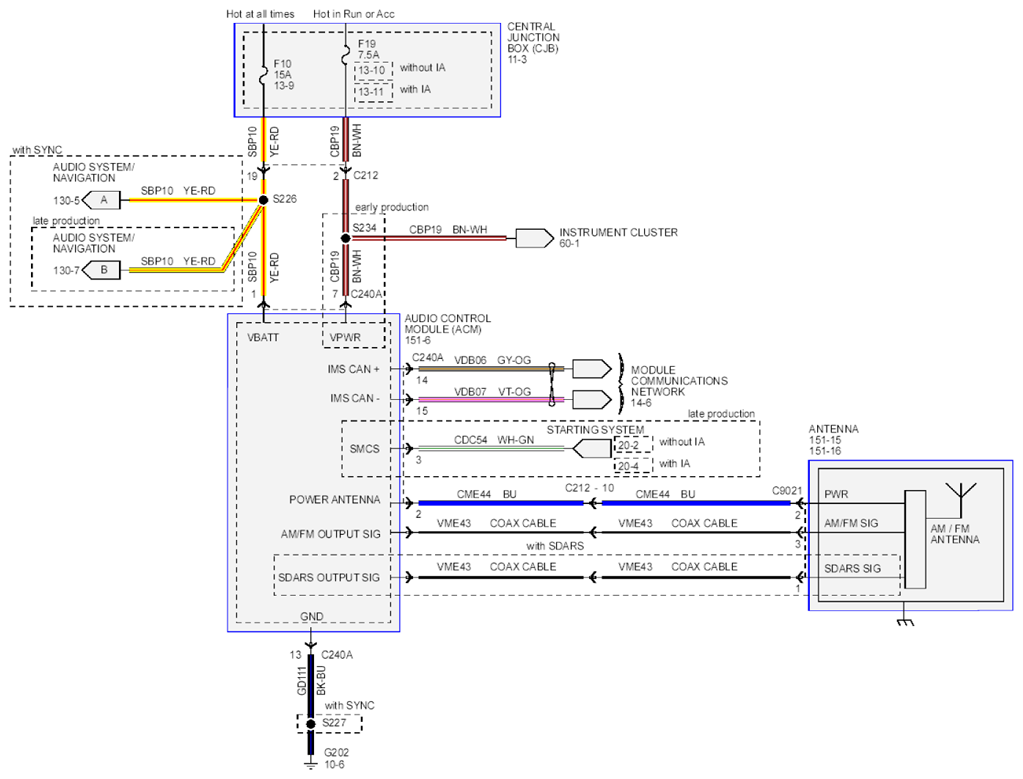

Fig 2: Audio System Navigation Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

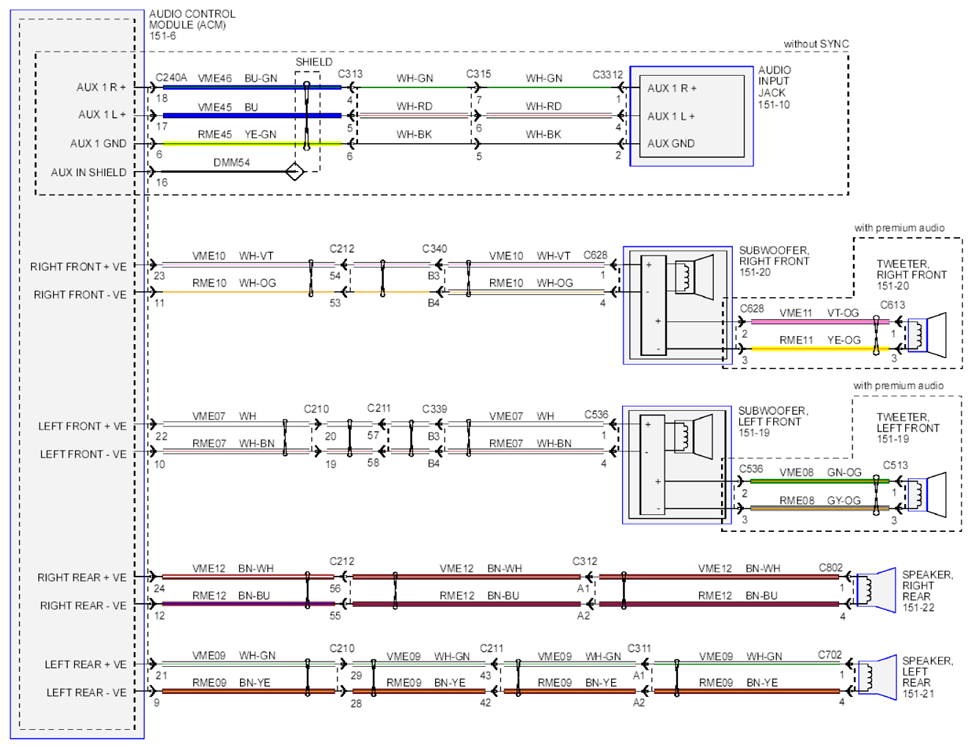

Fig 3: Audio System Navigation Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

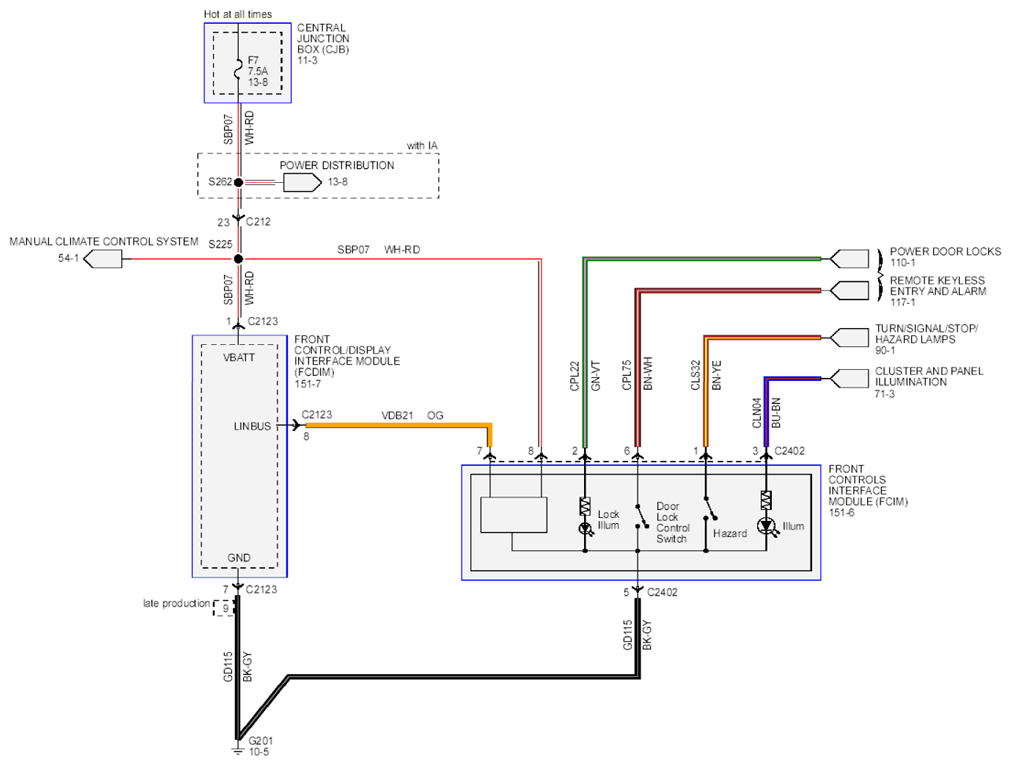

Fig 4: Audio System Navigation Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
