Seat Backrest - Front: Assembly

  1. Position the backrest and install the bolts in the sequence shown.
    • Tighten to 48 Nm (35 lb-ft).

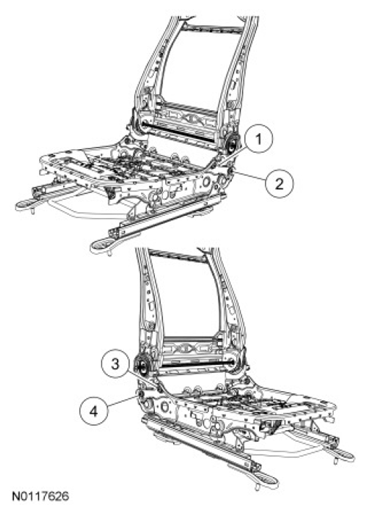

    Fig 1: Identifying Backrest Bolts Tightening Sequence
    G06937820Courtesy of FORD MOTOR CO.
  2. For additional information on installation of a seat side air bag module, refer to Side Air Bag Module in the Removal and Installation portion of SUPPLEMENTAL RESTRAINT SYSTEM .
  3. Install the seat. For additional information, refer to SEAT - FRONT  in this information.
