Electronic Throttle Control Connector - C1449

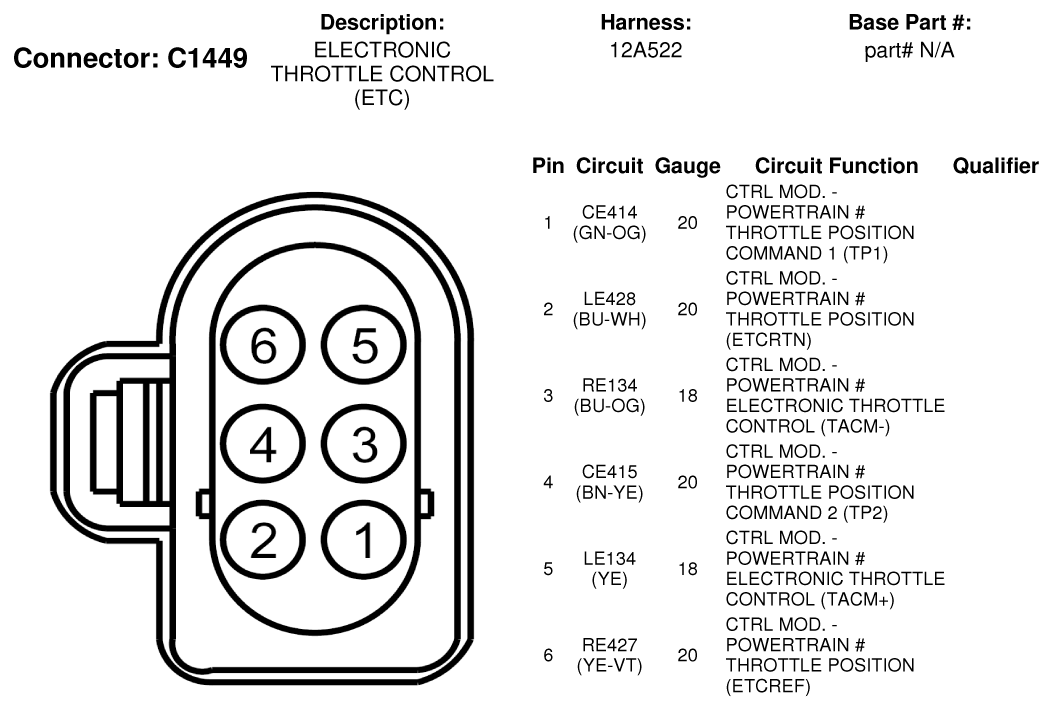

Fig 1: Electronic Throttle Control Connector End View (C1449)

G07329191

Courtesy of FORD MOTOR CO.
