Safety Belt Retractor - Front: Notes
NOTE:

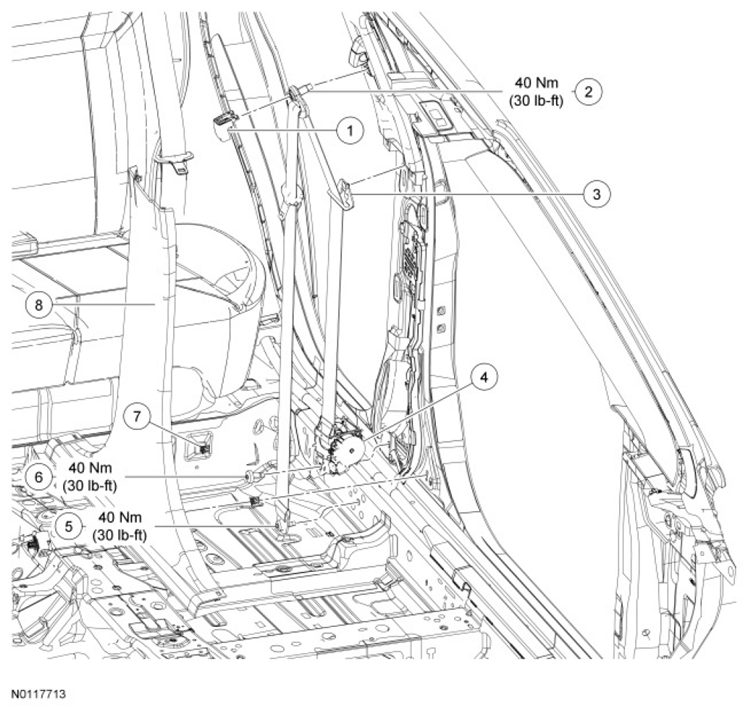

LH shown in illustration, RH similar.
PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 60262 | D-ring cover |
| 2 | - | Safety belt D-ring bolt (part of 611B08 (RH)/611B09 (LH)) |
| 3 | - | Safety belt guide (part of 611B08 (RH)/611B09 (LH)) |
| 4 | 611B08 (RH)/611B09 (LH) | Safety belt retractor |
| 5 | - | Safety belt anchor bolt (part of 611B08 (RH)/611B09 (LH)) |
| 6 | W712015 | Safety belt retractor bolt |
| 7 | 63918 | B-pillar lower trim panel retaining clip (2 required) |
| 8 | 24346 (RH)/24347 (LH) | B-pillar lower trim panel |
