Valve Stem Diameter

NOTE: Refer to the appropriate ENGINE - 1.6L for the specification.
  1. Measure the diameter of each intake and exhaust valve stem at the points shown in illustration. Verify the diameter is within specification.

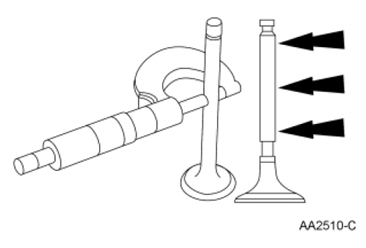

    Fig 1: Measuring Diameter Of Intake & Exhaust Valve Stem
    G06939017Courtesy of FORD MOTOR CO.
