Piston Pin Bore Diameter

NOTE: Refer to the appropriate ENGINE - 1.6L for the specification.
  1. NOTE: Piston and piston pins are a matched set and should not be interchanged.

    Measure the piston pin bore diameter in 2 directions on each side. Verify the diameter is within specification.

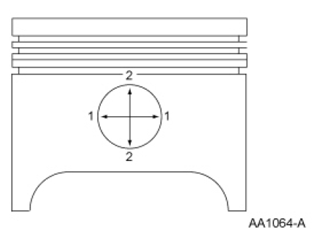

    Fig 1: Measuring Piston Pin Bore Diameter
    G06938994Courtesy of FORD MOTOR CO.
