Selector Lever: Removal

Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Disconnect the selector lever cable end from the selector lever ball stud.

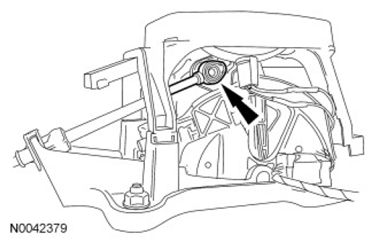

Fig 1: Locating Selector Lever Cable End With Selector Lever Ball Stud
Courtesy of FORD MOTOR CO.
Release the locking tab on the selector lever cable clip and remove the selector lever cable from the selector lever housing.

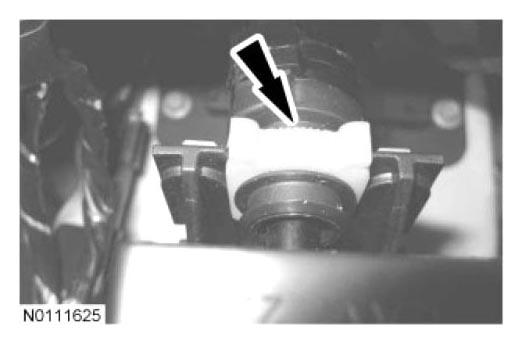

Fig 2: Locating Locking Tab On Selector Lever Cable Clip
Courtesy of FORD MOTOR CO.
Disconnect the selector lever electrical connector.

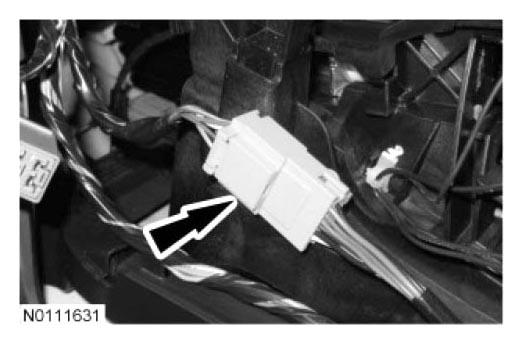

Fig 3: Locating Selecting Lever Electrical Connector
Courtesy of FORD MOTOR CO.
Using a suitable tool, remove the wiring harness from the selector lever base.

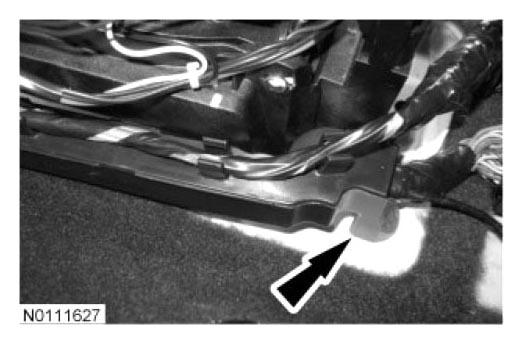

Fig 4: Locating Wiring Harness With Selector Lever Base
Courtesy of FORD MOTOR CO.
Disconnect the Restraints Control Module (RCM) electrical connector.

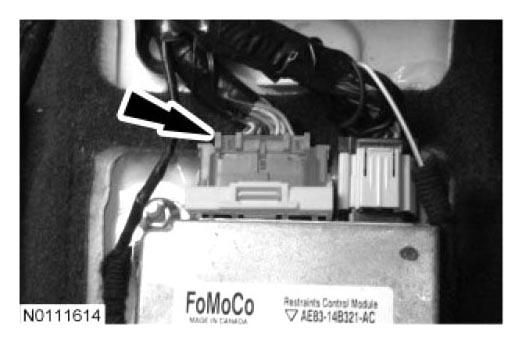

Fig 5: Locating Restraints Control Module (RCM) Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the 4 selector lever nuts and remove the selector lever.

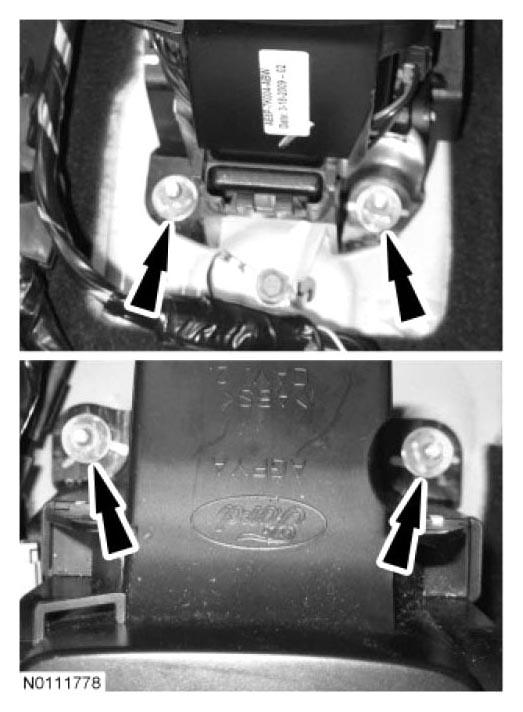

Fig 6: Locating Selector Lever Nuts
Courtesy of FORD MOTOR CO.
