Repowering Procedure

Vehicles with keyed ignition (vehicles with ignition switch)

1. Turn the ignition from OFF to ON.
2. Install RCM fuse 20 (10A) to the CJB.
WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
3. Connect the battery ground cable.
4. Prove out the SRS as follows:

   Turn the ignition from ON to OFF. Wait 10 seconds, then turn the ignition back to ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If a SRS fault is present, the air bag warning indicator indicates the fault in one of the following ways:

   • fail to light.
   • remain lit continuously.
   • flash.

   The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required for the RCM to complete the testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime sounds in a pattern of 5 sets of 5 beeps. If this occurs, diagnose and repair the air bag warning indicator and any SRS fault discovered.

   Clear all continuous DTCs from the RCM and Occupant Classification System Module (OCSM) using a scan tool.

   Vehicles with Intelligent Access (IA) (vehicles with push button start system)

5. Install RCM fuse 20 (10A) to the CJB and install the cover.
6. Remove the Smart Keyless Ignition Relay (CJB relay 7).

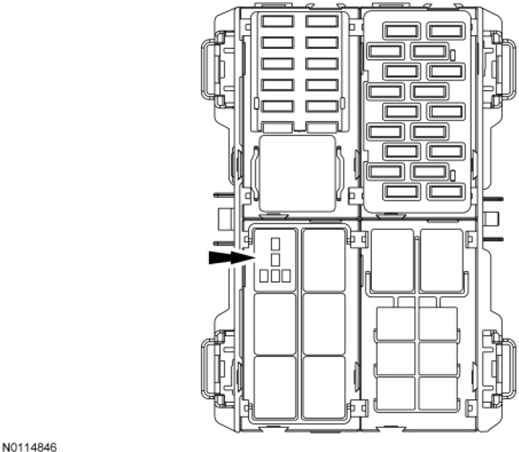

   Fig 1: Locating Smart Keyless Ignition Relay (CJB Relay 7)

   Courtesy of FORD MOTOR CO.
7. Install a fused (15A) jumper wire between Smart Keyless Entry Ignition Relay (CJB relay 7) socket pins 3 and 5 as shown in illustration.

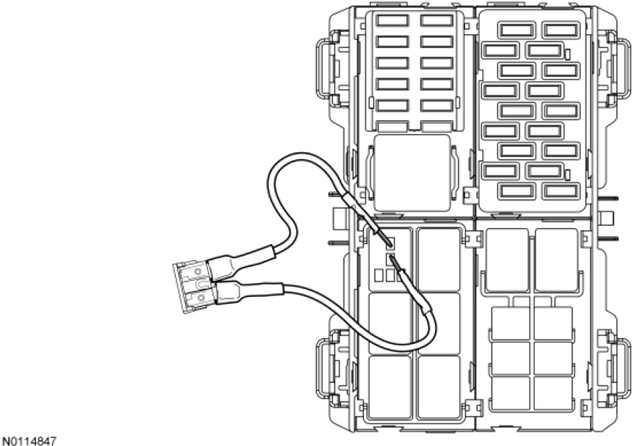

   Fig 2: Installing Fused (15A) Jumper Wire Between Smart Keyless Entry Ignition Relay (CJB Relay 7) Socket Pins 3 And 5

   Courtesy of FORD MOTOR CO.
WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any air bag module when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
8. Connect the battery ground cable.
9. Remove the fused jumper wire from the CJB.
10. Install the Smart Keyless Ignition Relay (CJB relay 7).
11. Prove out the SRS as follows:

    With the ignition OFF, wait 10 seconds, then turn the ignition ON and monitor the air bag warning indicator with the air bag modules installed. The air bag warning indicator illuminates continuously for approximately 6 seconds and then turns off. If an air bag SRS fault is detected, the air bag warning indicator indicates the fault in one of the following ways:

    • fail to light.
    • remain lit continuously.
    • flash.

    The flashing might not occur until approximately 30 seconds after the ignition has been turned from OFF to ON. This is the time required to complete testing of the SRS. If the air bag warning indicator is inoperative and a SRS fault exists, a chime will sound in a pattern of 5 sets of 5 beeps. If this occurs, the diagnose and repair the air bag warning indicator and any SRS fault discovered.

    Clear all RCM and OCSM CMDTCs.
