Passenger Side Window Control Switch Connector - C604

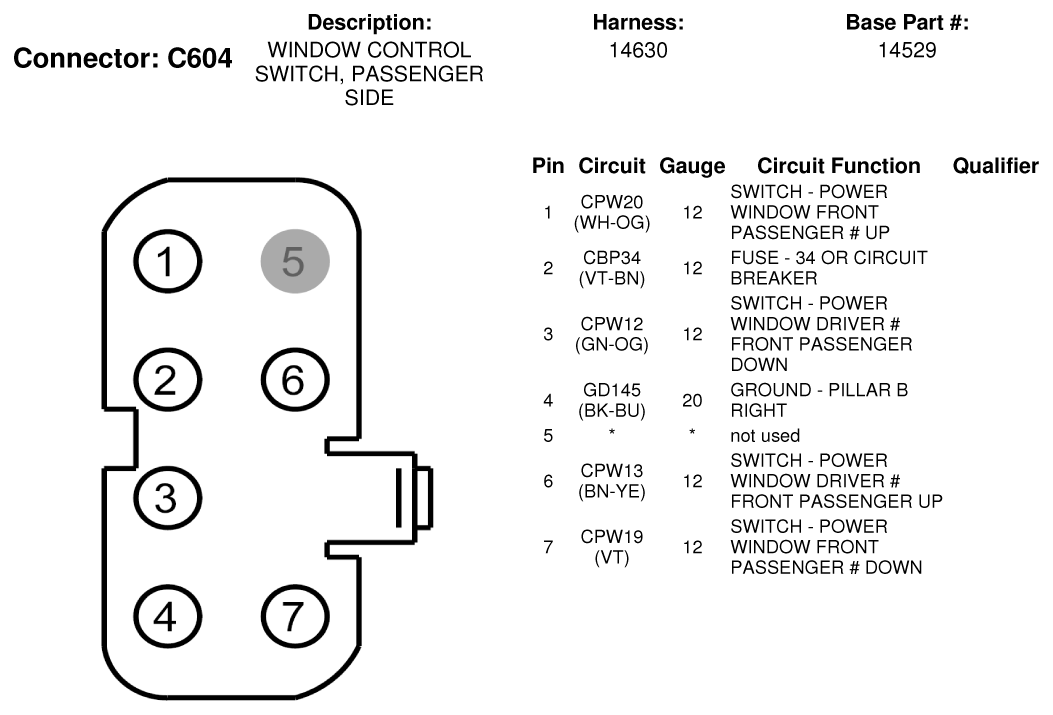

Fig 1: Passenger Side Window Control Switch Connector End View (C604)

G07329143

Courtesy of FORD MOTOR CO.
