Fuel Pump Control Module Connector - C3416

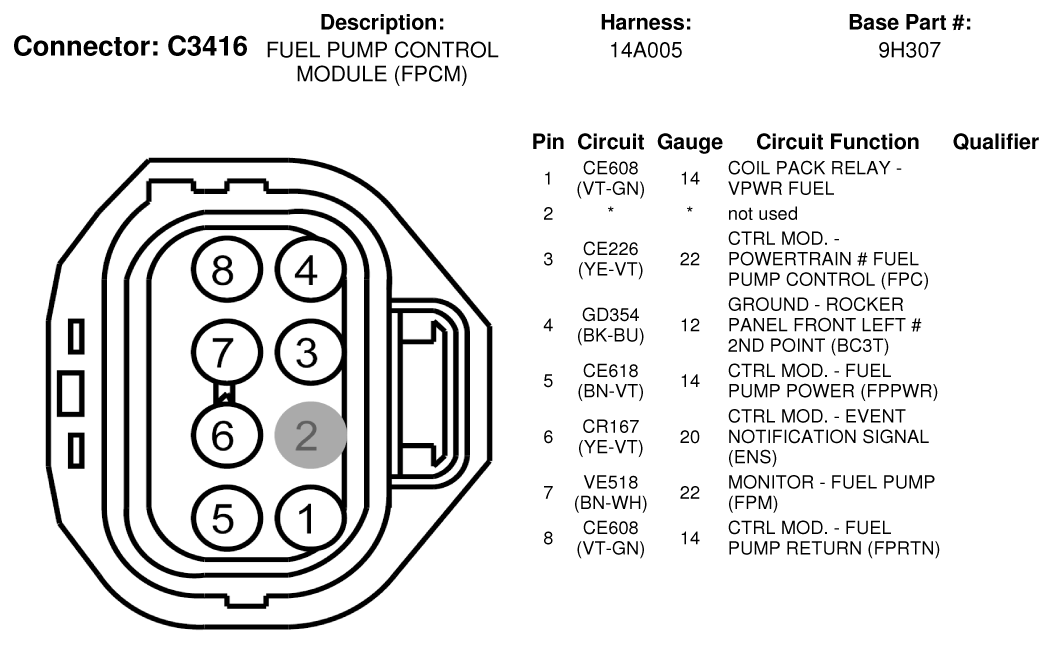

Fig 1: Fuel Pump Control Module Connector End View (C3416)

G07329254

Courtesy of FORD MOTOR CO.
