Liftgate Latch: Notes

WARNING: This page is about a different car, the 2013 Ford Fiesta. However, it is still accessible from the selected car via links, so may be relevant.

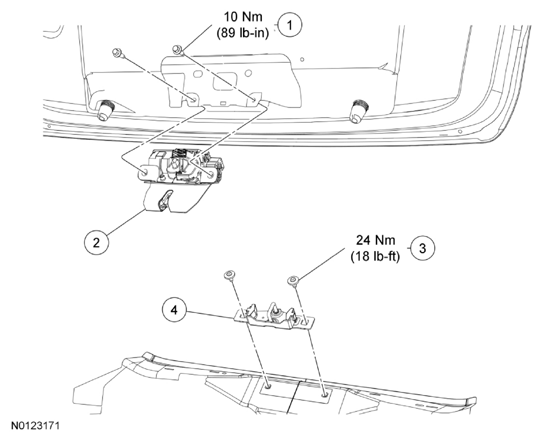

Fig 1: Exploded View Of Liftgate Latch With Torque Specifications
G07981494Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W705125 Liftgate latch bolt
2 442A66 Liftgate latch
3 W500212 Liftgate striker bolt
4 404B12 Liftgate striker
