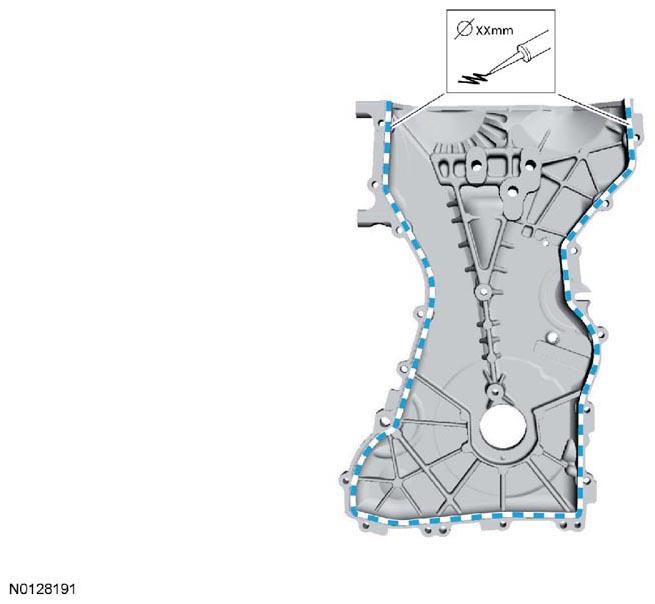

Fig 1: Example Of Sealer, Lubricant, Weight, Tape Or Cleaning Detergent Applying Area
Courtesy of FORD MOTOR CO.
Illustration 5 is an example of location symbols used to show the location of a component or system within the vehicle.
