Input Shaft Speed Sensor 1 Connector - C143

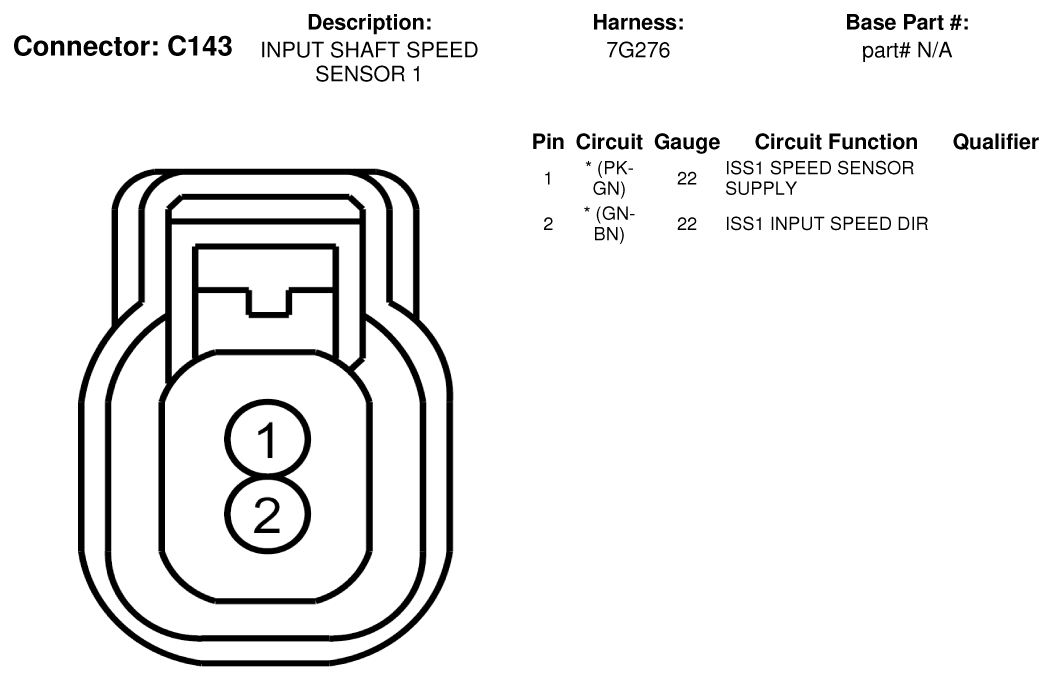

Fig 1: Input Shaft Speed Sensor 1 Connector End View (C143)

G07329023

Courtesy of FORD MOTOR CO.
