Valve Spring Free Length

WARNING: This page is about a different car, the 2011 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to the appropriate engine article for the specification.

Measure the free length of each valve spring.

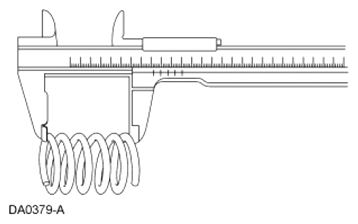

Fig 1: Measuring Free Length Of Valve Spring
Courtesy of FORD MOTOR CO.
