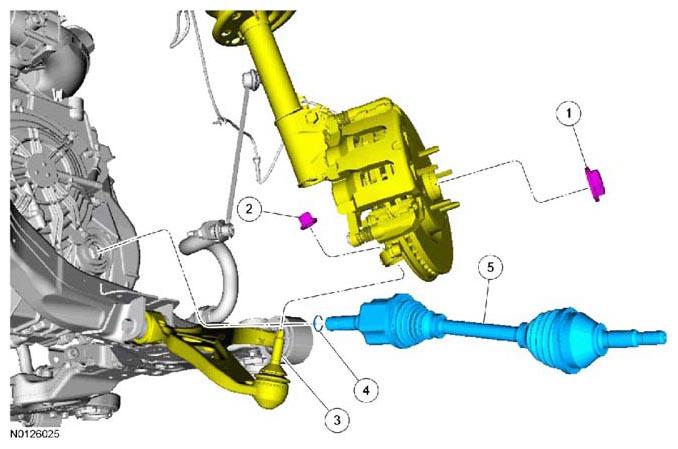

Exploded View
ITEM DESCRIPTION CHART
| Item | Service Part Number | Description | Tool Number | Notes |
|---|---|---|---|---|
| 1 | W714890 | Wheel hub nut | - | REFER to Installation |
| 2 | W710015 | Lower ball joint nut | - | 200 Nm (148 lb-ft) |
| 3 | 3051 Left Hand (LH) | Lower ball joint | - | - |
| 4 | 3B422 | Halfshaft Circlip | - | - |
| 5 | 3B437 | Halfshaft assembly | 205-D070 (D93P-1175-B), 205-832, 100-001 (T50T-100-A) | - |
