Pinpoint Test

  1. CHECK THE ADJUSTABLE PEDAL OPERATION WITH THE ADJUSTABLE PEDAL SWITCH
    1. Press the adjustable pedal switch in each direction for more than one second and observe the adjustable pedals.
    • Do the adjustable pedals operate for more than one second in the direction selected using the switch?
    • Yes:  GO to step 2 .
    • No:  If the pedals do not move at all using the switch, REFER to Diagnostic Routine D .

      If the pedals only move in 1 second intervals regardless of button operation REFER to Diagnostic Routine C .

  2. CHECK THE MEMORY SYSTEM OPERATION
    1. Set a memory position for the driver seat, exterior mirrors and adjustable pedals to memory SET switch button 1. REFER to PROGRAMMING MEMORY POSITION .
    2. Select PARK.
    3. Press the memory SET switch button 1 and observe:
    • Driver seat
    • Exterior mirrors
    • Adjustable pedals
    • Do all 3 items move when the button is pressed?
    • Yes:  GO to step 3 .
    • No:  If all 3 items do not move, REFER to DIAGNOSTIC ROUTINE J to diagnose the memory SET switch.

      If only the adjustable pedals do not move, GO to step  3 .

      If only the driver seat does not move, REFER to DIAGNOSTIC ROUTINE J .

      If only the exterior mirrors do not move, REFER to Diagnostic Routine D .

  3. CHECK THE Remote Keyless Entry (RKE) OPERATION
    1. Set a memory position in the Remote Keyless Entry (RKE) for the driver seat, exterior mirrors and adjustable pedals. REFER to REMOTE MEMORY ACTIVATION .
    2. Select PARK.
    3. Press the unlock button on the Remote Keyless Entry (RKE) transmitter/Intelligent Access (IA) key and observe:
    • Driver seat
    • Exterior mirrors
    • Adjustable pedals
    • Do all 3 items move when the button is pressed?
    • Yes:  The system is operating correctly at this time.
    • No:  If all 3 items do not move, REFER to DIAGNOSTIC ROUTINE J .

      If only the adjustable pedals do not move, GO to step 4 .

      If only the driver seat does not move, REFER to SYMPTOM CHART: SEATING - MEMORY .

      If only the exterior mirrors do not move, REFER to SYMPTOM CHART: REAR VIEW MIRRORS - EXTERIOR, MEMORY .

    • CHECK FOR Driver Seat Module (DSM) OR Body Control Module (BCM) Diagnostic Trouble Codes (DTCs)
      1. Ignition ON
      2. Using a scan tool, perform Driver Seat Module (DSM) self-test.
      3. Using a scan tool, perform Body Control Module (BCM) self-test.
      4. Record any Diagnostic Trouble Codes (DTCs) retrieved from the Driver Seat Module (DSM) or the Body Control Module (BCM).
      • Was Diagnostic Trouble Code (DTC) U0140 retrieved from the Driver Seat Module (DSM) or U0212: 00 retrieved from the Body Control Module (BCM)?
      • Yes:  If Diagnostic Trouble Code (DTC) U0140 is retrieved from the Driver Seat Module (DSM), REFER to DIAGNOSTIC ROUTINE AN .

        If Diagnostic Trouble Code (DTC) U0212: 00 is retrieved from the Body Control Module (BCM), REFER to DIAGNOSTIC ROUTINE AJ .

      • No:  GO to step 5 .
    • CHECK THE ADJUSTABLE PEDAL MOTOR AND HALL-EFFECT SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
      1. Ignition OFF.
      2. Disconnect Adjustable Pedal Motor.
      3. Disconnect Steering Column Control Module (SCCM) C2414C.
      4. Disconnect Steering Column Control Module (SCCM) C2414B.
      5. Ignition ON.
      6. Measure:

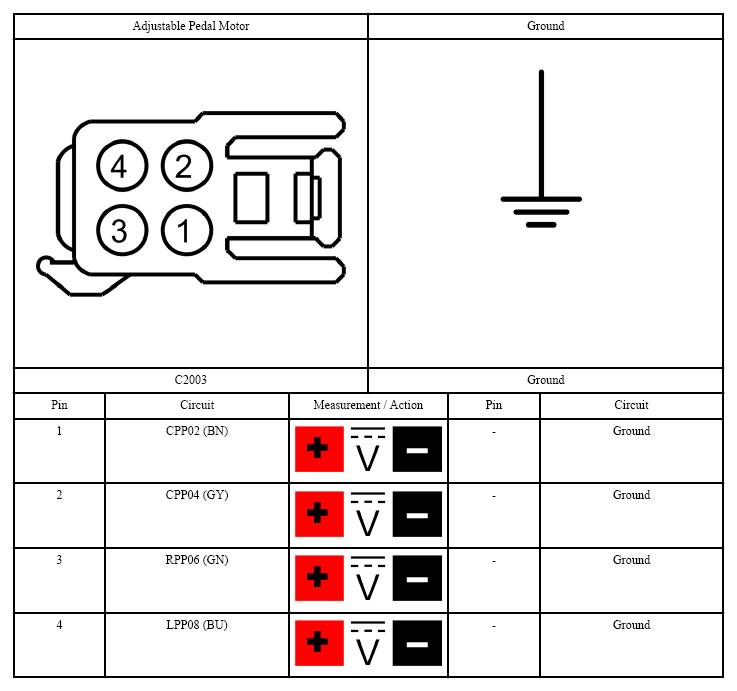

      Fig 1: Checking Adjustable Pedal Motor And Hall-Effect Sensor Circuits For Short To Voltage
      G07420768Courtesy of FORD MOTOR CO.
      • Is any voltage present?
      • Yes:  REPAIR the affected circuit(s).
      • No:  GO to step 6 .
    • CHECK THE ADJUSTABLE PEDAL MOTOR AND HALL-EFFECT SENSOR CIRCUITS FOR A SHORT TO GROUND
      1. Ignition OFF.
      2. Measure:

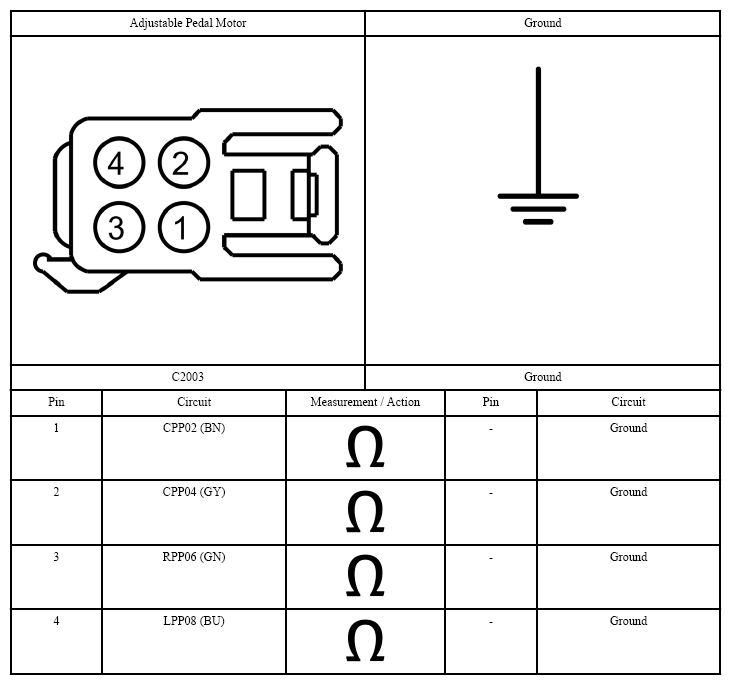

      Fig 2: Checking Adjustable Pedal Motor And Hall-Effect Sensor Circuits For Short To Ground
      G07420769Courtesy of FORD MOTOR CO.
      • Are the resistance values greater than 10,000 ohms?
      • Yes:  GO to step 7 .
      • No:  REPAIR the affected circuit(s).
    • CHECK THE ADJUSTABLE PEDAL MOTOR CIRCUITS FOR AN OPEN
      1. Measure:

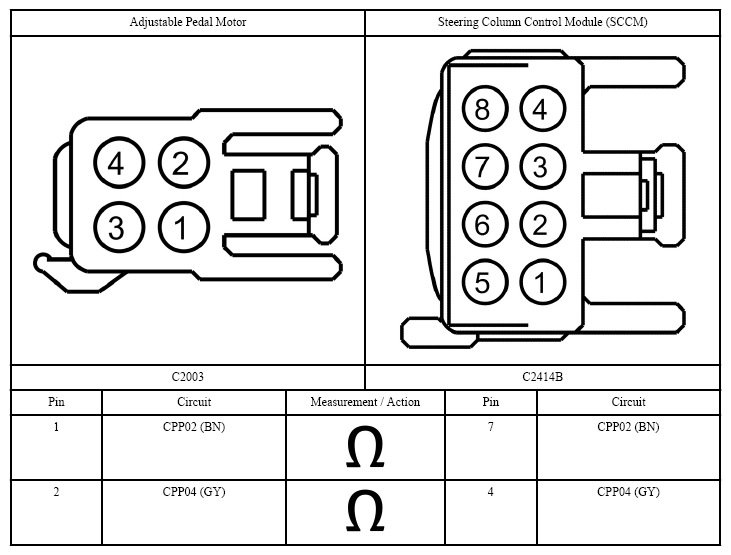

      Fig 3: Checking Adjustable Pedal Motor Circuits For Open
      G07420770Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      • Yes:  GO to step 8 .
      • No:  REPAIR the affected circuit(s).
    • CHECK THE ADJUSTABLE PEDAL MOTOR HALL-EFFECT SENSOR CIRCUITS FOR AN OPEN
      1. Measure:

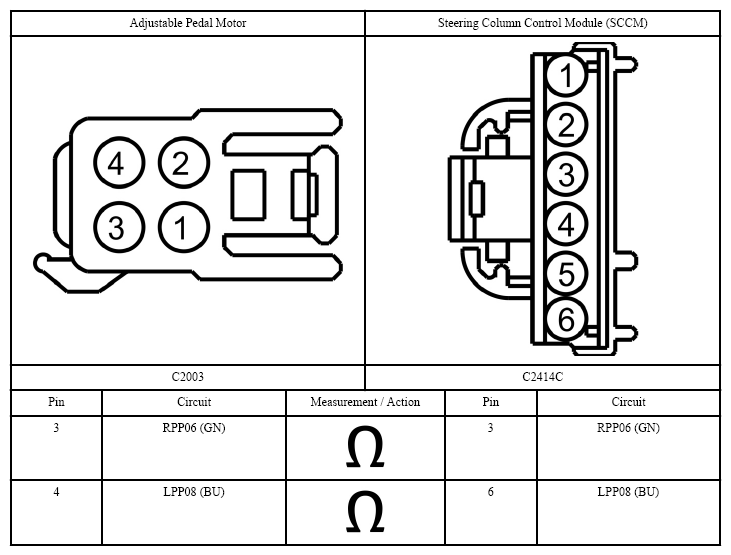

      Fig 4: Checking Adjustable Pedal Motor Hall-Effect Sensor Circuits For Open
      G07420771Courtesy of FORD MOTOR CO.
      • Are the resistances less than 3 ohms?
      • Yes:  GO to step 9 .
      • No:  REPAIR the affected circuit(s).
    • CHECK THE ADJUSTABLE PEDAL MOTOR AND HALL-EFFECT SENSOR CIRCUITS FOR A SHORT TOGETHER
    1. Measure:

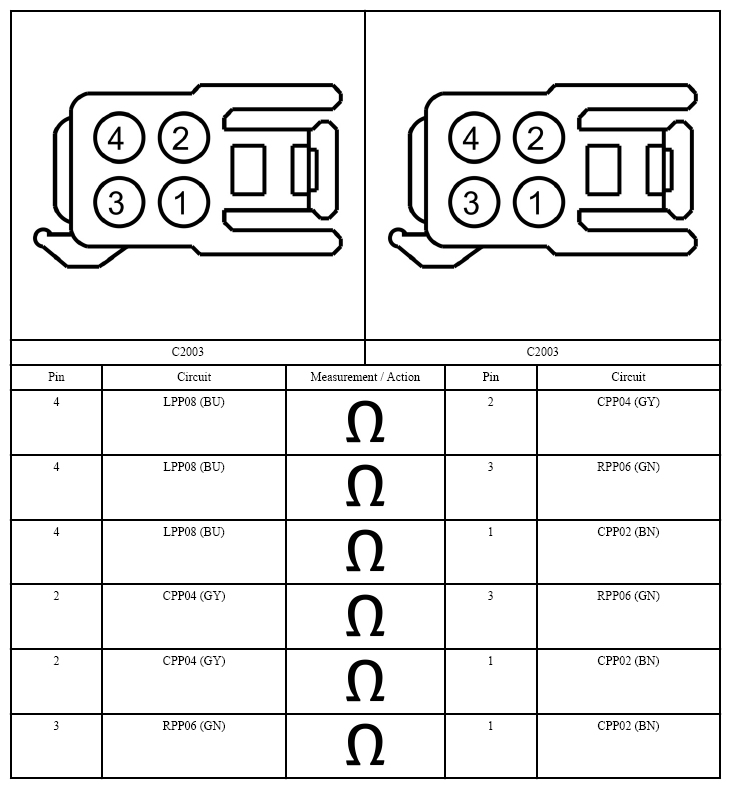

    Fig 5: Checking Adjustable Pedal Motor And Hall-Effect Sensor Circuits For Short Together
    G07420772Courtesy of FORD MOTOR CO.
    • Are the resistance values greater than 10,000 ohms?
    • Yes:  CONFIGURE the Steering Column Control Module (SCCM) using As-built data and TEST the system for normal operation.

      If the adjustable pedals do not operate correctly, INSTALL a new adjustable pedal motor and bracket assembly. REFER to ACCELERATOR PEDAL .

    • No:  REPAIR the affected circuit(s).
