Pinpoint Test

CHECK THE Steering Column Control Module (SCCM) Diagnostic Trouble Codes (DTCs)
1. Using a scan tool, perform Steering Column Control Module (SCCM) self-test.
- Were Diagnostic Trouble Codes (DTCs) B1368: 11 or B1368: 12 retrieved?
- Yes: GO to step 2 .
- No: If no Diagnostic Trouble Codes (DTCs) were retrieved, CONFIGURE the Steering Column Control Module (SCCM) using as-built data. TEST the system for normal operation. If any other Steering Column Control Module (SCCM) Diagnostic Trouble Codes (DTCs) were retrieved, REFER to DTC CHART: STEERING COLUMN CONTROL MODULE (SCCM) .
CHECK THE Steering Column Control Module (SCCM) HALL-EFFECT CIRCUITS FOR A SHORT TO VOLTAGE
1. Ignition OFF.
2. Disconnect Adjustable Pedal Motor.
3. Disconnect Steering Column Control Module (SCCM) C2414C.
4. Ignition ON.
5. Measure:

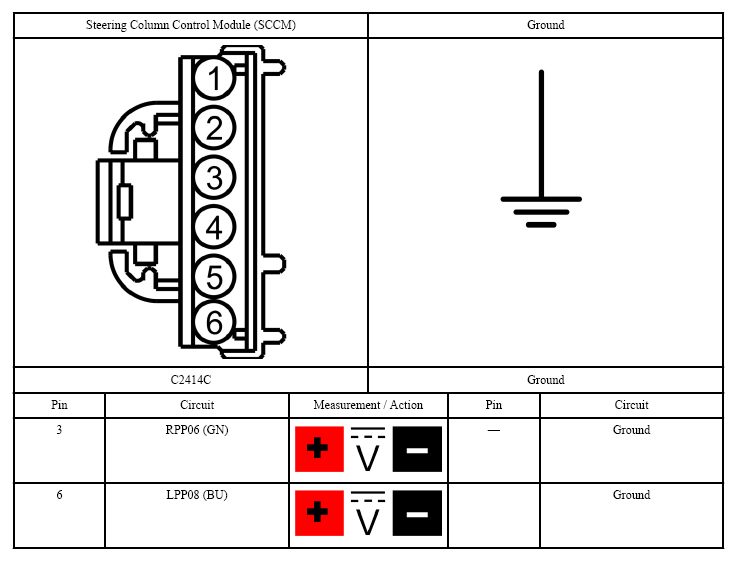

Fig 1: Checking Steering Column Control Module (SCCM) Hall-Effect Circuits For Short To Voltage
Courtesy of FORD MOTOR CO.
- Is any voltage present?
- Yes: REPAIR the affected circuit(s). CLEAR the Diagnostic Trouble Codes (DTCs).
- No: GO to step 3 .
CHECK THE Steering Column Control Module (SCCM) HALL-EFFECT CIRCUITS FOR A SHORT TO GROUND
1. Ignition OFF.
2. Measure:

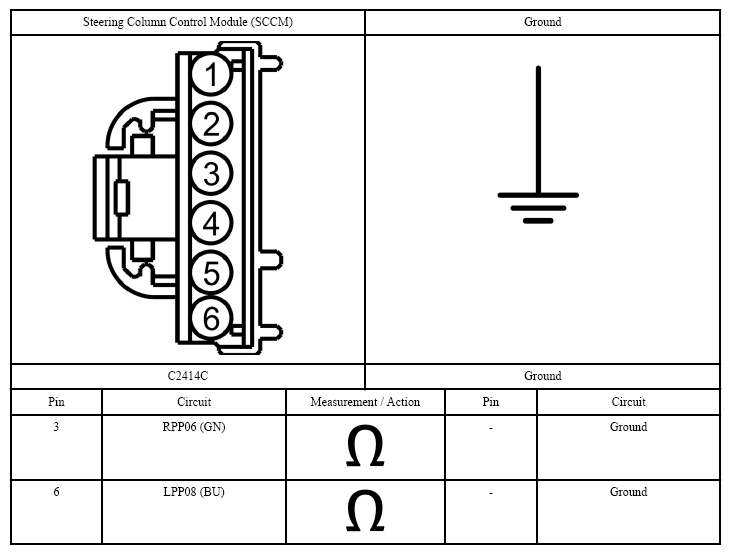

Fig 2: Checking Steering Column Control Module (SCCM) Hall-Effect Circuits For Short To Ground
Courtesy of FORD MOTOR CO.
- Are the resistances greater than 10,000 ohms?
- Yes: GO to step 4 .
- No: REPAIR the affected circuit(s). CLEAR the Diagnostic Trouble Codes (DTCs).
CHECK THE Steering Column Control Module (SCCM) HALL-EFFECT CIRCUITS FOR AN OPEN
1. Measure:

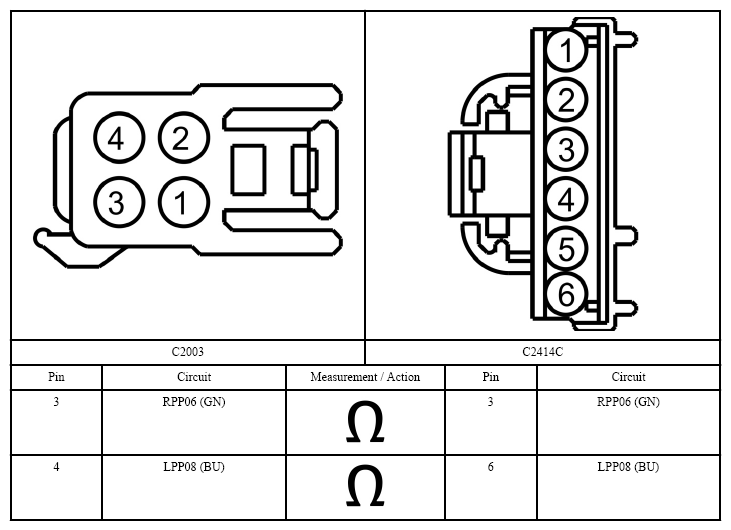

Fig 3: Checking Steering Column Control Module (SCCM) Hall-Effect Circuits For Open
Courtesy of FORD MOTOR CO.
- Are the resistances less than 3 ohms?
- Yes: GO to step 5 .
- No: REPAIR the affected circuit(s). CLEAR the Diagnostic Trouble Codes (DTCs).
CHECK THE Steering Column Control Module (SCCM) HALL-EFFECT CIRCUITS FOR A SHORT TOGETHER

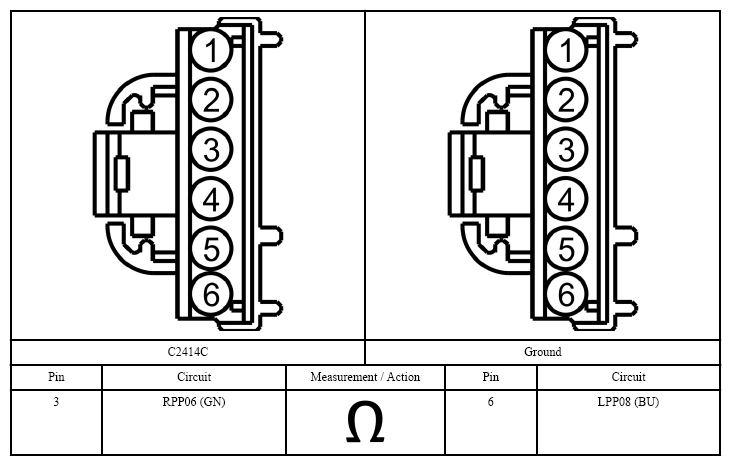

Measure:

Fig 4: Checking Steering Column Control Module (SCCM) Hall-Effect Circuits For Short Together

Courtesy of FORD MOTOR CO.

Is the resistance greater than 10,000 ohms?

Yes: INSTALL a new adjustable pedal motor and bracket assembly, REFER to ACCELERATOR PEDAL . CLEAR the Diagnostic Trouble Codes (DTCs). REPEAT the self-test. If Diagnostic Trouble Code (DTC) B1368: 11 or B1368: 12 return, INSTALL a new Steering Column Control Module (SCCM), REFER to STEERING COLUMN CONTROL MODULE (SCCM) .
No: REPAIR the circuit. CLEAR the Diagnostic Trouble Codes (DTCs).
