Exploded View

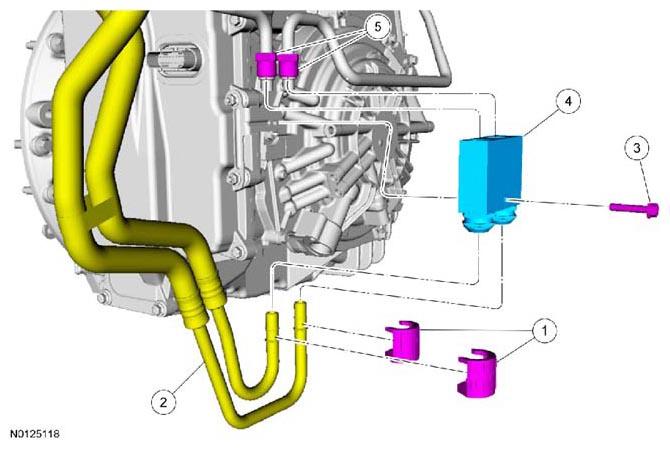

Figure 1: Thermal Bypass Valve
REFER to Thermal Bypass Valve
ITEM DESCRIPTION CHART
| Item | Service Part Number | Description | Torque |
|---|---|---|---|
| 1 | 7Z465 | Transmission fluid cooler tube secondary latches | - |
| 2 | 7R081 | Transmission mounted transmission fluid cooler tube assembly | - |
| 3 | part of 7R081 | Thermal bypass valve bolt | 12 Nm (106 lb-in) |
| 4 | 7H322 | Thermal bypass valve | - |
| 5 | part of 7R081 | Transmission fluid cooler tube assembly nuts | 30 Nm (22 lb-ft) |
