General Procedure

NOTE: Refer to general specifications in the appropriate 303-01 engine section for the appropriate specification.

Use a valve seat runout gauge to check valve seat runout.

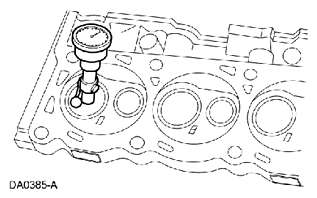

Fig 1: Measuring Valve Seat Runout
G07420912Courtesy of FORD MOTOR CO.
