Power-Fold Seat Module (PFSM): Removal

NOTE: For component identification and locations, REFER to SEAT - EXPLODED VIEW .

NOTE: If power seat is inoperative, REFER to MANUAL OVERRIDE OF INOPERATIVE POWER SEAT - 3RD ROW .

Fig 1: Identifying Left Hand Seat

Courtesy of FORD MOTOR CO.

NOTE: Do not lift the load floor flapper panel too far or damage to the wire harness retainers will occur.

Separate the Left Hand (LH) load floor support from the load floor panel.
- Push the load floor support rearward and slightly lift the load floor to disengage.

  Fig 2: Locating Load Floor Support
  Courtesy of FORD MOTOR CO.
Slightly raise the Left Hand (LH) load floor flapper panel, pull up and detach the wire harness retainer attached to the load floor support studs.

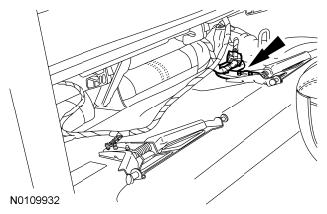

Fig 3: Locating Wire Harness Retainer Of Load Floor Support Studs
Courtesy of FORD MOTOR CO.
Carefully lift the Left Hand (LH) load floor flapper panel, disconnect the electrical connectors, detach the retainers and remove the Power-Fold Seat Module (PFSM).

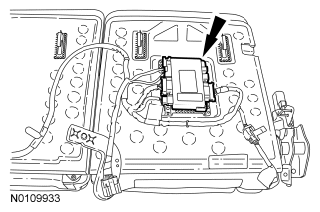

Fig 4: Locating Power-Fold Seat Module (PFSM)
Courtesy of FORD MOTOR CO.
