Exploded View

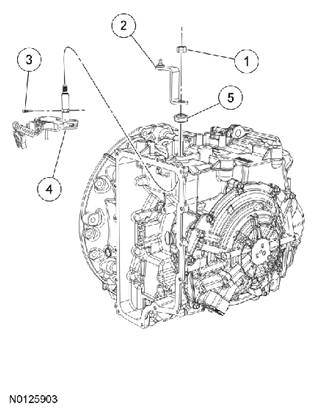

Fig 1: Exploded View Of Main Control Lever Shaft Seal
G07429990Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Service Part Number Description
1 W711892 Manual control lever nut
2 7A256 Manual control lever
3 7B210 Transmission Range (TR) sensor pin
4 7H557 Transmission Range (TR) sensor
5 7F337 Manual control shaft seal
