Main Control Valve Body: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. REFER to LIFTING POINTS .
  2. Remove the solenoid body. REFER to SOLENOID BODY ASSEMBLY .
  3. Remove the 10 main control valve bolts, the Transmission Range (TR) sensor detent spring and the main control valve body.

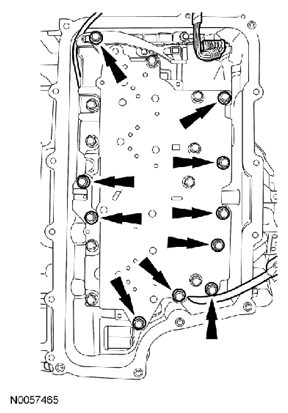

    Fig 1: Locating TR Sensor Detent Spring And Main Control Valve Body Bolts
    G07429899Courtesy of FORD MOTOR CO.
