Component Location

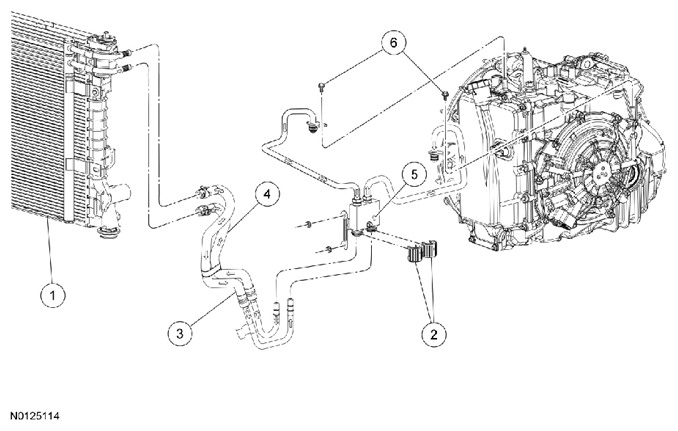

ITEM DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 7A095 | Transmission fluid cooler |
| 2 | 7Z465 | Transmission fluid cooler tube secondary latches |
| 3 | 7R081 | Transmission fluid cooler return tube |
| 4 | 7R081 | Transmission fluid cooler inlet tube |
| 5 | 7H322 | Transmission fluid thermal bypass valve |
| 6 | W711538 | Transmission fluid cooler tube bolts |

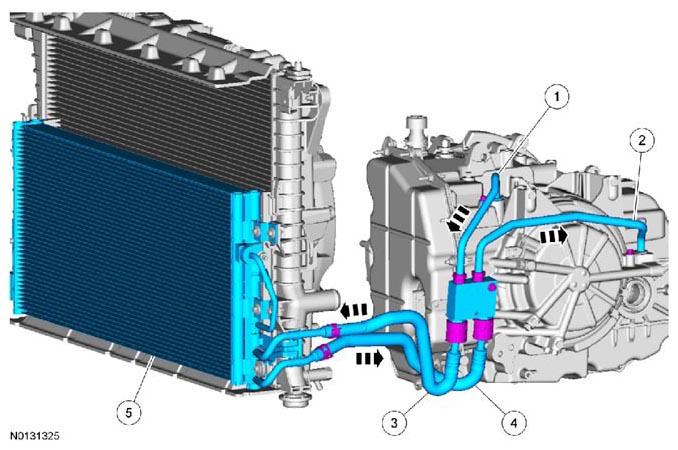

ITEM DESCRIPTION CHART
| Item | Service Part Number | Description |
|---|---|---|
| 1 | 7R081 | Transmission mounted transmission fluid cooler inlet tube |
| 2 | 7R081 | Transmission mounted transmission fluid cooler outlet tube |
| 3 | 7A030 | Transmission fluid cooler inlet tube |
| 4 | 7A031 | Transmission fluid cooler outlet tube |
| 5 | 7A095 | Transmission fluid cooler |
