Subwoofer Connector - C3020

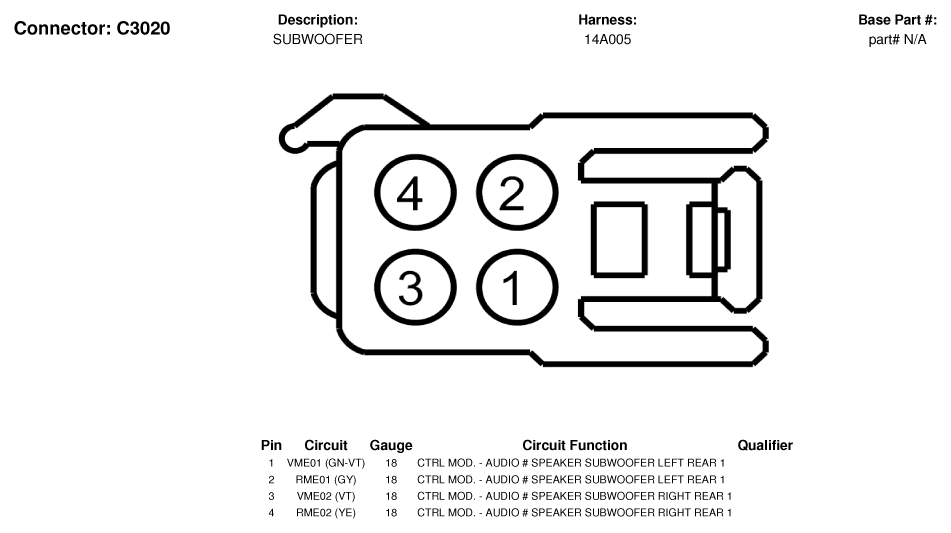

Fig 1: Subwoofer Connector End View (C3020)

G07328137

Courtesy of FORD MOTOR CO.
