Audio Input Jack Connector - C2362
Audio Input Jack Connector - C2362

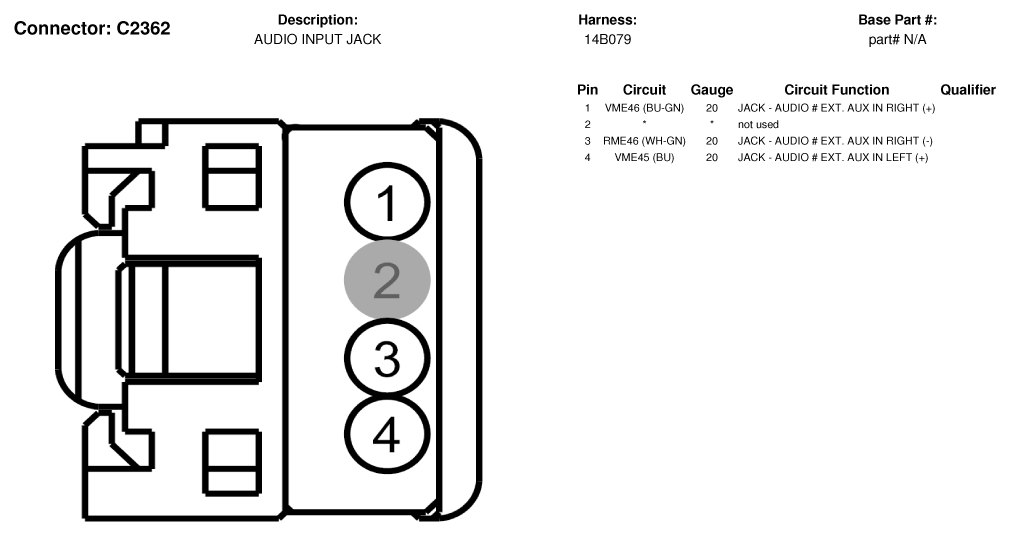

Fig 1: Audio Input Jack Connector End View (C2362)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
