Passive Anti-Theft Transceiver Connector - C252

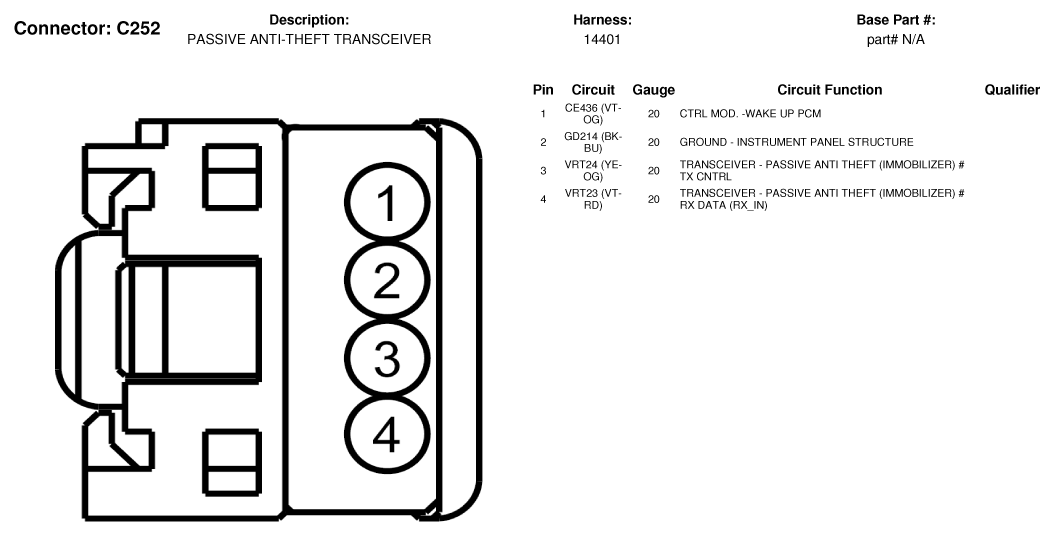

Fig 1: Passive Anti-Theft Transceiver Connector End View (C252)

G07327924

Courtesy of FORD MOTOR CO.
