Seat control switch, driver side (6 - way): Schematic

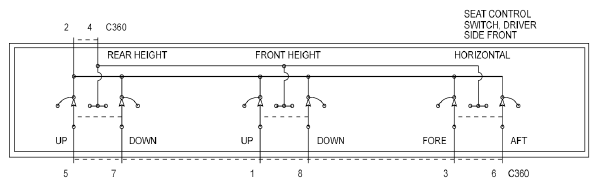

Fig 1: Seat Control Switch, Driver Side (6 - Way) - Schematic

G07327825

Courtesy of FORD MOTOR CO.
