Front Controls Interface Module Connector - C2402

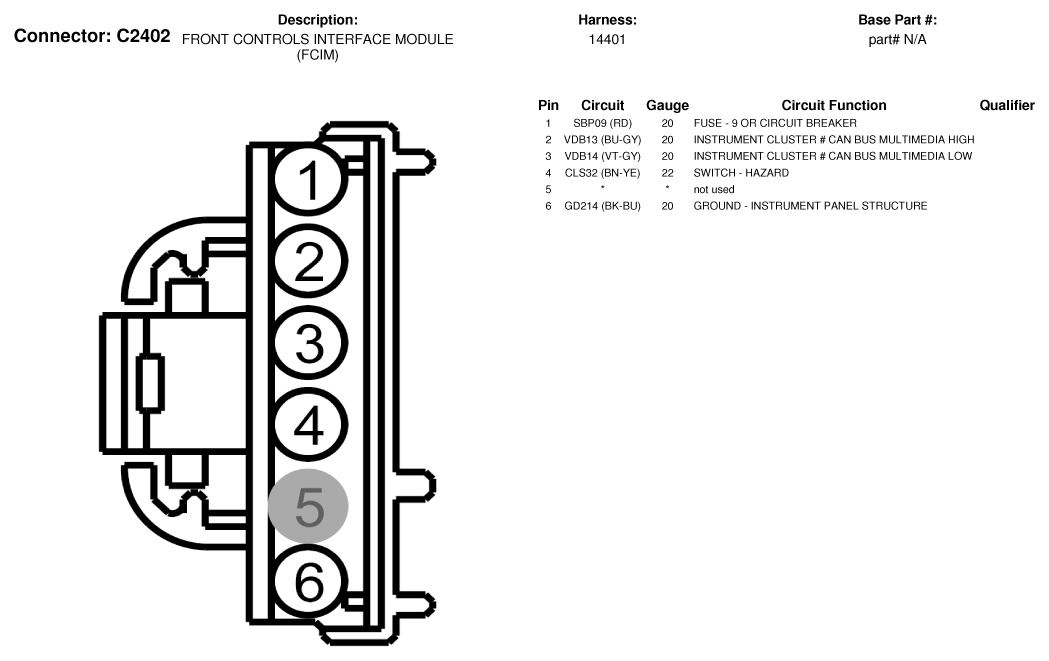

Fig 1: Front Controls Interface Module Connector End View (C2402)

G07328121

Courtesy of FORD MOTOR CO.
