General Procedure

Inspect the flexplate for:

  1. any cracks.
  2. worn ring gear teeth.
  3. chipped or cracked ring gear teeth.

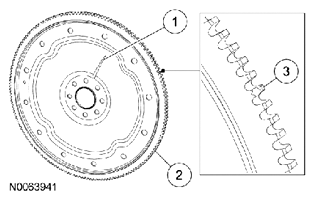

    Fig 1: Identifying Flexplate Inspection Points
    G07420877Courtesy of FORD MOTOR CO.
