Exploded View

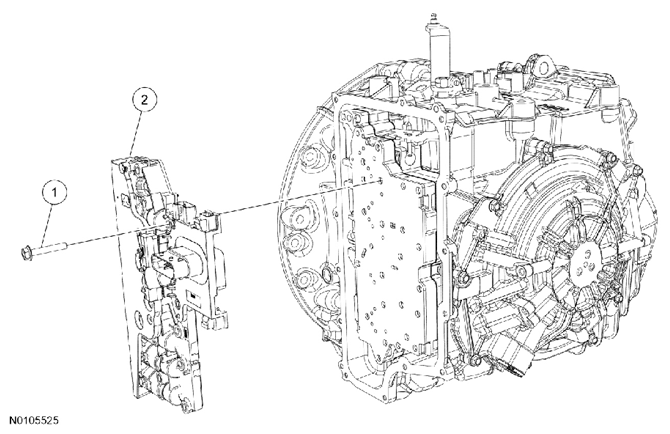

Fig 1: Exploded View Of Solenoid Body And Solenoid Body Bolt
G07429959Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Service Part Number Description
1 7J291 Solenoid body bolt (11 required)
2 7Z369 Solenoid body
