Exploded View

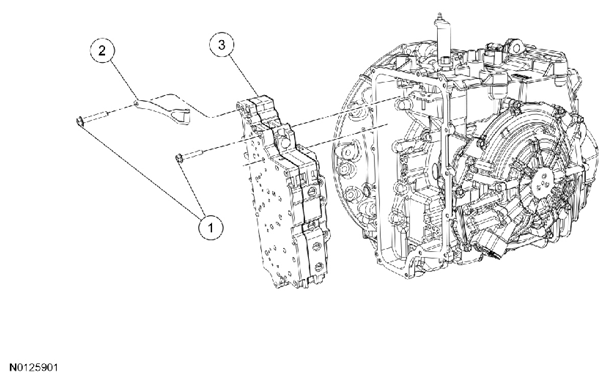

Fig 1: Exploded View Of Main Control Valve Body
G07429898Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION CHART

Item Service Part Number Description
1 7J291 Main control valve body bolts (10 required)
2 7E332 Manual valve detent spring
3 7A100 Valve body
