Right Front Speaker Connector - C612

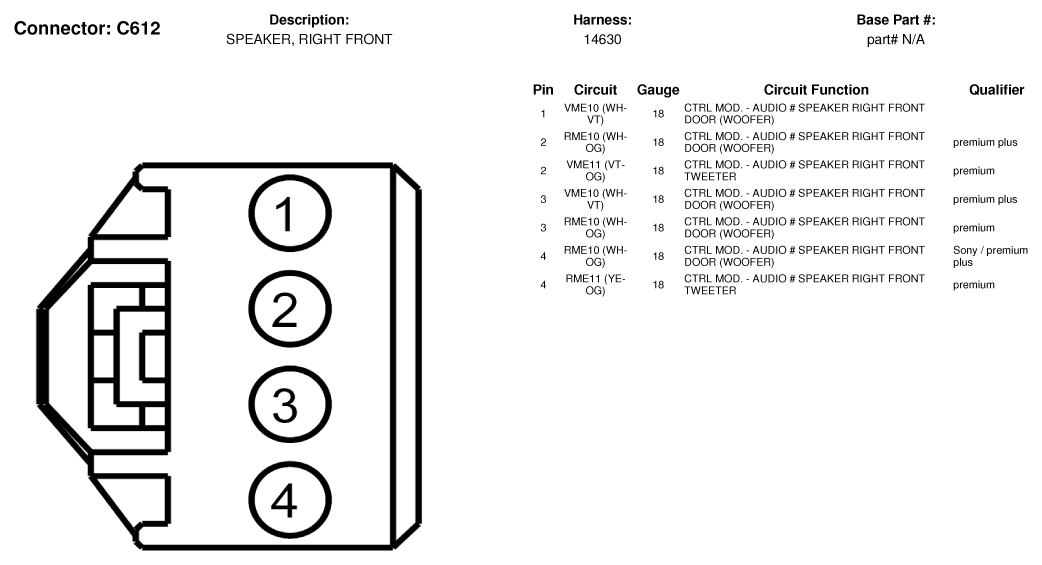

Fig 1: Right Front Speaker Connector End View (C612)

G07328020

Courtesy of FORD MOTOR CO.
