Explorer Base, AWD, 6F55
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Vehicle Dynamics Systems
Vehicle Dynamics Systems

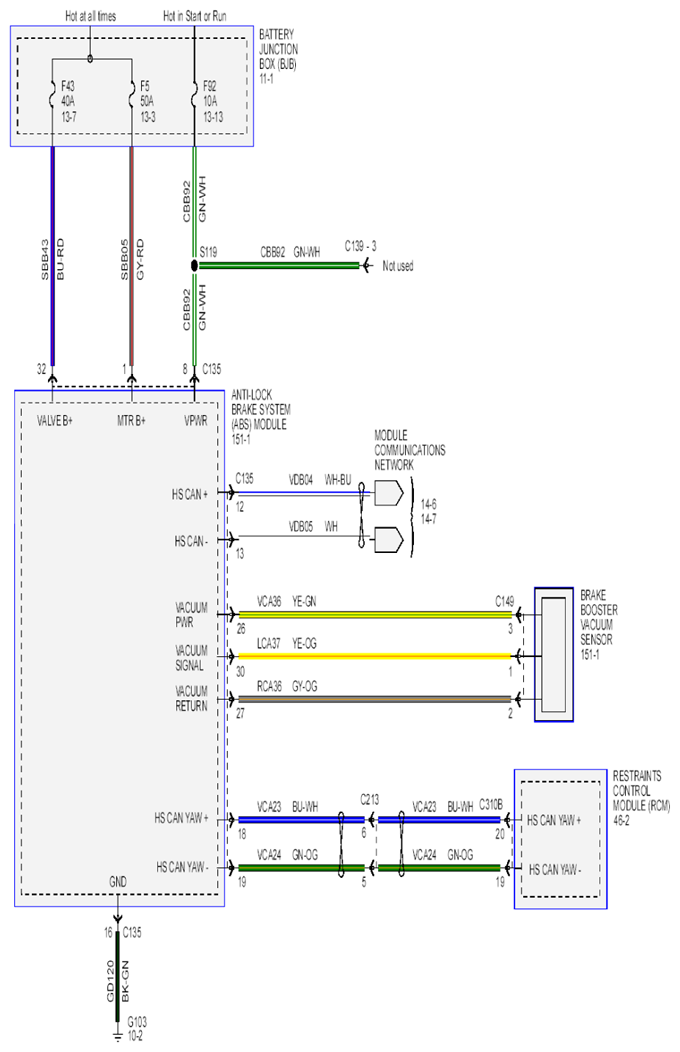

Fig 1: Vehicle Dynamics Systems Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

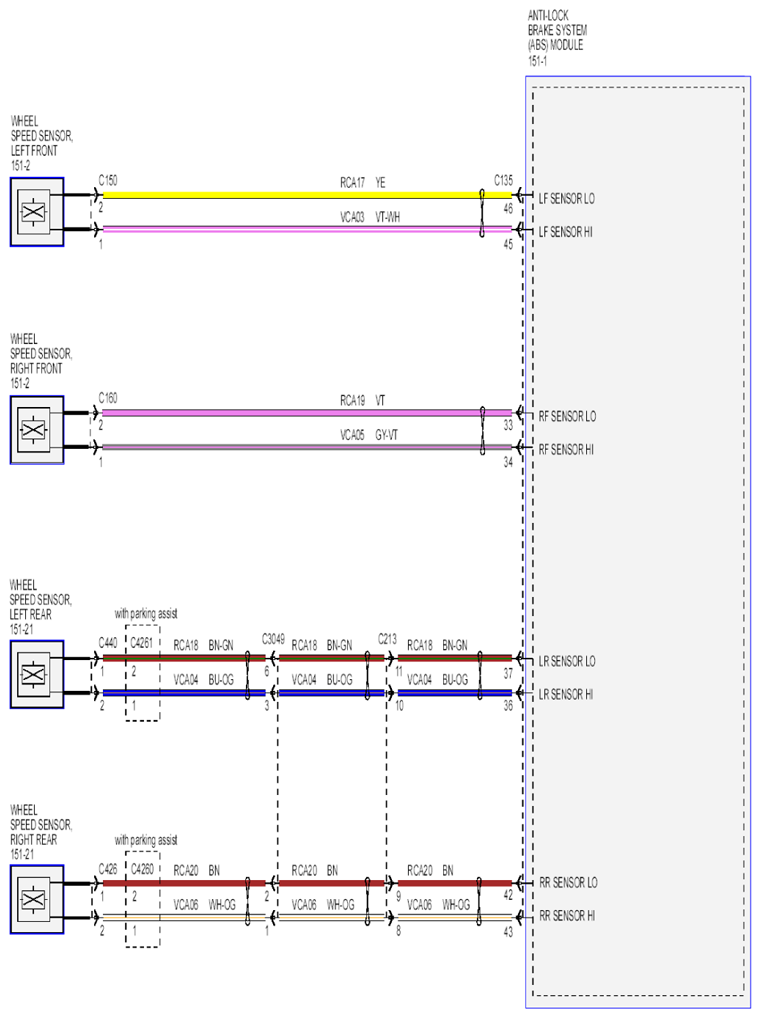

Fig 2: Vehicle Dynamics Systems Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

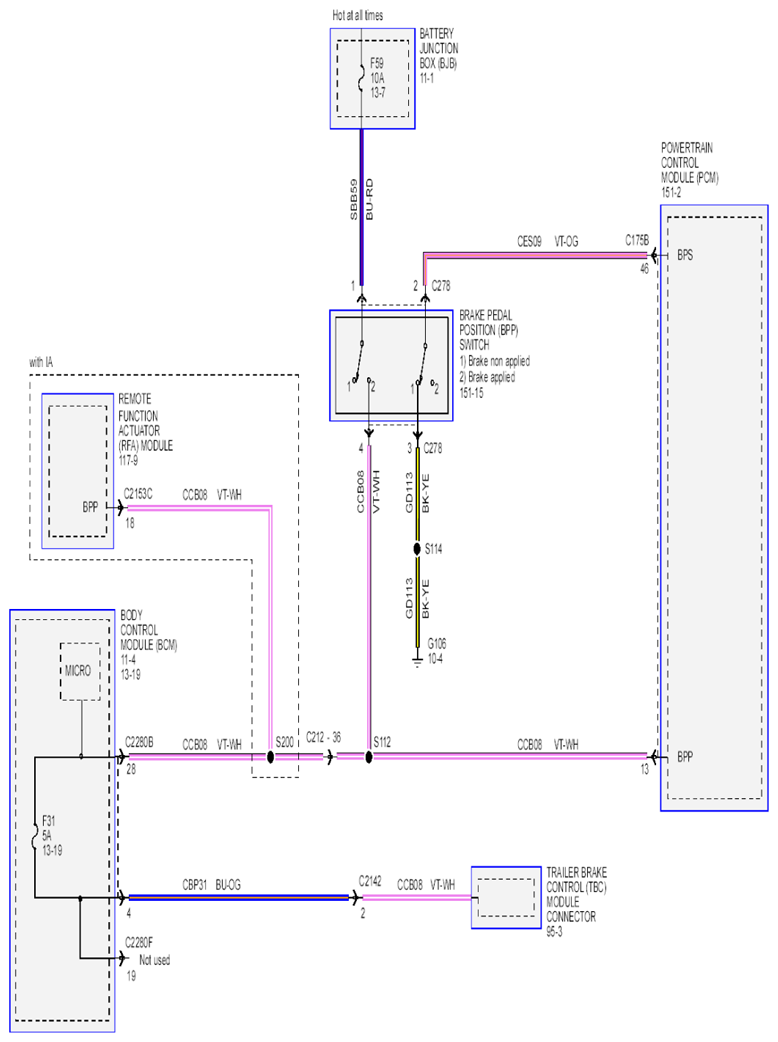

Fig 3: Vehicle Dynamics Systems Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

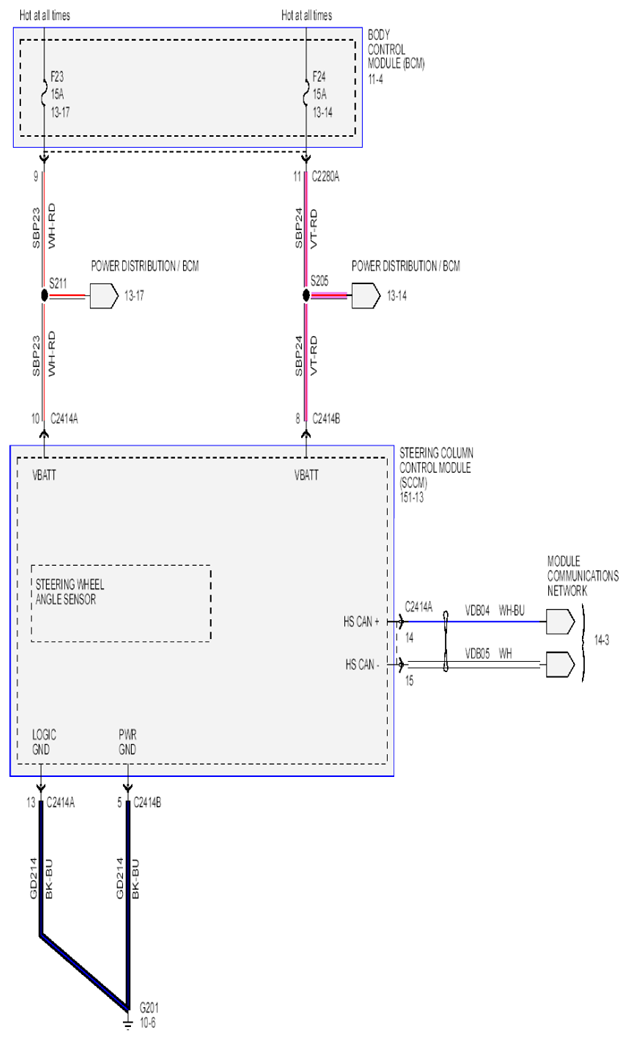

Fig 4: Vehicle Dynamics Systems Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
